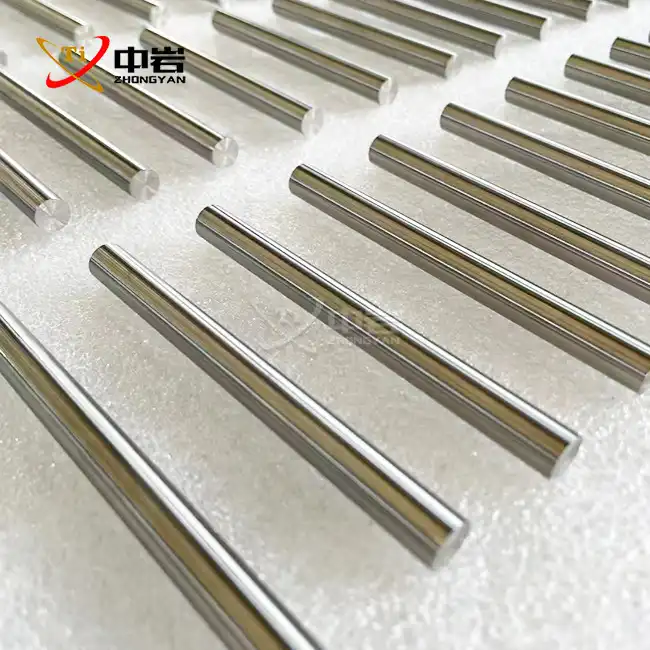

Why Do Manufacturers Prefer GR2 Titanium Round Bar for Machining Parts?

Manufacturers all over the world are turning more and more to gr2 titanium round bar for precision machining tasks because it is the only material that can prevent rust, be machined easily, and be inexpensive. This type of commercially pure titanium solves important problems in fields like chemical processing and aircraft where equipment needs to work in harsh conditions without needing to be replaced often. The gr2 titanium round bar is a good compromise between performance and usability. It has yield strengths similar to mild steel but the great ability to shape and join that higher-grade metals don't have. It's important for procurement managers and engineers who are looking at different materials for custom CNC made parts to understand why GR2 has become the workhorse of the industry. This will help them get the best performance and lowest total cost of ownership from their products.

Understanding GR2 Titanium Round Bar: Properties and Specifications

Chemical Composition and Grade Definition

The gr2 titanium round bar is made from commercially pure titanium with the UNS R50400 name. It is mostly made to ASTM B348 standards for industry uses and ASTM F67 standards for medical device parts. This pure material has a single-phase alpha lattice, and the highest levels of impurities are tightly controlled: the oxygen content can go up to 0.25%, the iron content stays below 0.30%, and the nitrogen content stays below 0.03%. These trace elements change the material's mechanical features without changing its natural ability to fight corrosion. Grade 5 titanium metal (Ti-6Al-4V) adds aluminum and vanadium to make it stronger, but GR2 stays pure to make it more flexible and easy to work with. Because it doesn't contain any alloying elements, gr2 titanium round bar is perfect for uses that need complicated shaping or lengthy welding processes.

Mechanical Properties and Machining Performance

The GR2 round bars that Baoji Zhongyan Titanium Industry makes have great mechanical properties that make cutting go more smoothly. These bars have a tensile strength of over 900 MPa and a yield strength of over 850 MPa. They provide structural stability for demanding uses while keeping a minimum elongation of 10% for good flexibility during manufacturing. The material has an elasticity value of 114 GPa, which means it is about 40% less stiff than steel. This means that stress concentrations are lower in situations where the material is being loaded and unloaded quickly. The gr2 titanium round bar has a hardness of 36 on the HRC scale, which means it forms chips perfectly during CNC turning and cutting operations without wearing out the tools too quickly.Precision in measurements is still the most important part of our production process. We keep our 10mm diameter bars within h9 accuracy levels, which makes sure that they work the same way in high-volume production runs. The annealed treatment and cold-drawn finish improve the surface's structure, creating bright surfaces that don't need much post-processing. With a density of 4.43 g/cm³ and a weight of about 2.5 kg per meter, these bars are about 45% lighter than stainless steel equivalents, meeting requirements for lighter materials in the aircraft and automobile industries. The smooth finish makes it easier to machine, and the 1000mm standard length can be used for a wide range of cutting needs for special parts.

Corrosion Resistance and Heat Treatment Characteristics

Titanium dioxide (TiO₂) forms a passive film on its own, which protects the gr2 titanium round bar from corrosion in both oxidizing and slightly reducing conditions. This layer of regenerative oxide stays stable in seawater, hypochlorite solutions, wet chlorine atmospheres, and nitric acid amounts of up to 70%. In chloride-rich environments, some types of stainless steel rust in pits, but commercially pure titanium doesn't rust in those places, even at high temperatures. This property is especially useful in marine applications, where pump shafts and bolts made from GR2 bars can last for decades in saltwater without breaking down much.When treating gr2 titanium round bar with heat, stress release annealing is the main choice rather than precipitation hardening. As a standard, we heat the material to 650–750°C and then cool it down with air. This recrystallizes the grain and makes it more flexible for later cold working. This heat handling gets rid of any stresses left over from cold drawing while keeping the material's natural ability to fight corrosion. The stable structure of the alpha phase stops the formation of brittle intermetallic compounds. This keeps the mechanical qualities the same at all temperatures, from absolute zero to 315°C in constant service.

GR2 Titanium Round Bar vs Alternative Materials: A Comparative Analysis

Performance Metrics Against Stainless Steel and Aluminum

When buying teams look at different materials, they make decisions based on three important performance factors: the strength-to-weight ratio, the resistance to rust over time, and the lifecycle costs. The gr2 titanium round bar is much better than austenitic stainless steels (304/316) in salt settings. This is because titanium doesn't crack under stress, which is what usually goes wrong with heat exchanger tubes and chemical processing equipment. Even though 316L stainless steel costs about 60% less per kilogram, the initial savings are quickly lost in competitive media where replacements are needed every three to five years.There are different trade-offs with aluminum metals. For one-third of the cost of gr2 titanium round bar, grade 6061-T6 aluminum is a better material for machining and conducts heat better. However, aluminum is easily damaged by galvanic corrosion when mixed with other metals, and it can only be used up to 175°C. This limits its uses in naval systems and high-temperature chemical processing. Titanium keeps its shape at temperatures where aluminum starts to creep, so GR2 bars are necessary for parts that have to work in temperatures ranging from room temperature to 300°C.The comparison of strength to weight shows more complex issues. Our gr2 titanium round bar has a yield strength of 850 MPa and a density of 4.43 g/cm³. It has a specific strength of 192 kN·m/kg, which is a lot more than 304 stainless steel's 38 kN·m/kg. Even though 7075-T6 aluminum has a specific strength of 110 kN·m/kg, it corrodes easily and needs protective layers that make it heavier and more difficult to maintain. When engineers make spinning parts like agitator shafts in washing plants, they know that titanium's higher density means less stress on the bearings and longer equipment life.

Cost-Benefit Analysis for Industrial Applications

The initial cost of materials only tells a small part of the story of buying. A full total cost of ownership study needs to look at things like manufacturing costs, upkeep schedules, and downtime for operations. Because it tends to work harden and doesn't carry heat well, the gr2 titanium round bar is about 30% slower to make than austenitic stainless steel. It's important to choose the right cutting tools. Carbide tools that are properly delivered water last longer and keep standards for dimensions during CNC operations.In some cases, the cost of welding makes titanium a better choice. While TIG welding gr2 titanium round bar needs to be done in a neutral atmosphere to keep it from getting contaminated, the fact that it doesn't need a post-weld heat treatment to relieve stress cuts down on the number of steps needed to process it compared to martensitic stainless steels. Joint efficiency usually hits 90–95% of the strength of the base metal, so there are no worries about the weld zone becoming weaker in cold service. Titanium pipe systems have been used in industries that process liquefied natural gas for decades, while stainless steel setups need to be replaced every 15 years because of cracks caused by chloride.

Why GR2 Titanium Round Bar is the Preferred Choice for Manufacturers

Superior Machinability for Complex Geometries

Because of the way it is made, gr2 titanium round bar can be used to make complicated parts that would be hard to make with higher-strength titanium alloys. When cutting at speeds of 30 to 60 meters per minute with sharp, positive-rake tools, its alpha-phase microstructure forms chips very well during turning operations. Aerospace companies use GR2 bars to make parts for fluid systems, fasteners, and non-structural pieces that need to be machined more than once because of their tight tolerances and complicated shapes. Because the material is flexible, it can be used to make fasteners by thread rolling and cold heading without cracking. This gives designers more options than Grade 5 titanium does. Medical device makers really like how easy it is to machine when making surgical tools and dental implants from our gr2 titanium round bar stock. The biocompatibility confirmed by ASTM F67 and ISO 5832-2 standards takes away any worries about allergic reactions or tissue rejection. The precision grinding capability of the material allows for surface finishes below 0.4 µm Ra. Dental labs use 10mm diameter bars to make custom abutments and prosthesis frames. They make sure the dimensions are accurate to within ±0.02mm so that the bones can properly fuse together. The non-magnetic properties keep MRI technology from getting messed up, which is a problem with some types of stainless steel in medical settings.

Longevity in Harsh Operating Environments

Real-world performance data from chlor-alkali plants shows that gr2 titanium round bar is very durable in harsh chemical conditions. Electrode hanger bars made of GR2 material have been used constantly in electrochemical cells that make chlorine and caustic soda for more than 25 years, while other materials had to be replaced every 7–10 years because they corroded. Even if it is physically broken, the regenerative oxide film keeps its protective structure and quickly reforms when oxygen or water is present. This ability to heal itself is very helpful on offshore oil sites where it's hard to do inspections, and when a part breaks, it costs a lot to shut down output. Marine power systems that use gr2 titanium round bar for pump shafts say that their repair times are 300% longer than those that use bronze or stainless steel. The chlorides, sulfates, and living things in seawater make it one of the most corrosive natural settings. However, titanium can withstand both general and specific attack. Naval engineers who are making desalination equipment use GR2 bars for parts of high-pressure reverse osmosis pumps, because lower-quality materials would quickly wear down in areas where high-velocity salt flows. Titanium is useful in hybrid material assemblies that are becoming more popular in advanced naval structures because it doesn't corrode when mixed with carbon fiber composites.

Manufacturing Efficiency and Quality Consistency

Production managers like how gr2 titanium round bar helps them improve processes by keeping its shape and letting them predict how the material will react. With our cold-drawn bars with a h9 limit, you don't have to do any extra shaping, which takes time with hot-rolled stock. Controlled heating creates a regular grain structure that ensures that all production lots have the same mechanical properties. This lowers the number of scrap parts that don't meet specifications. Automated CNC machining cells work better with titanium because it is not magnetic. This keeps magnetic workholding systems and coordinate measuring tools that are used for quality control from interfering. Because it can be welded and shaped, it lets makers combine units, which cuts down on the number of parts needed and the costs of keeping them in stock. A marine pump maker changed a six-piece stainless steel shaft assembly into a single welding part using Gr2 titanium round bar stock. This cut the time it took to put the assembly together by 40% and made it more reliable by getting rid of the mechanical joints. Autogenous TIG welding without filling metal makes it possible to make leak-proof joints in chemical processing equipment. This simplifies quality control processes and lowers the cost of materials. These efficiency gains add up over large production runs, and the lower costs of labor and fees help to make up for the high cost of titanium as a raw material.

Procurement Insights: How to Source High-Quality GR2 Titanium Round Bar

Quality Certifications and Standards Compliance

Professionals in charge of buying things need to make sure that sellers give full material test records (MTRs) that show they meet ASTM B348 standards for gr2 titanium round bar. The chemical make-up should be shown using optical emission spectrometry, the mechanical qualities should be shown using tensile tests according to ASTM E8, and the heat treatment should be confirmed. Systematic quality management is shown by ISO 9001:2015 approval, and aerospace-specific process controls are shown by AS9100 registration. Both of these are useful for uses outside of flight. Our Baoji Zhongyan Titanium Industry plant keeps full traceability from buying titanium sponge to inspecting the finished product. This lets us respond quickly to any quality issues that come up during customer machining operations. Third-party review services give more peace of mind for applications with a lot at stake. On witness samples, independent testing labs can use ultrasonics to find internal breaks, eddy currents to look for flaws on the surface, and mechanical property proof. Manufacturers of medical devices usually need products to meet ASTM F67 standards and also pass extra biocompatibility tests according to ISO 10993 series standards. Chemical processors using ASME pressure vessel codes need material certifications that can be traced back to the approved material organizations (AMOs) listed in Section II, Part D. Knowing these rules before placing an order saves a lot of money and time if the material pedigree documentation doesn't meet the needs of the end use.

Pricing Models and Volume Considerations

The prices of gr2 titanium round bar are based on the unstable nature of the raw materials, the difficulty of handling them, and the specifics of each order. Base prices are usually given per kilogram, and extra charges are made for tight measurements, unique surface finishes, or faster delivery. Unit costs are greatly affected by volume limits. For example, quantities below 100 kilograms suffer small-lot premiums of 15–25%, while promises exceeding 1,000 kilograms allow access to preferred pricing tiers. With annual blanket buy agreements and planned releases, you can plan your budget ahead of time and make sure you have priority production slots when the market is really busy. Customization choices have clear effects on prices. Standard 10mm diameter bars in 1000mm lengths are our most cost-effective product because they are easy to make and waste very little material. Non-standard sizes between 8mm and 50mm come with small price increases of 5–10%. Precision-ground bars that meet h6 standards come with 20–30% price increases because they require more processing steps. Custom length cutting services allow customers to handle their goods just-in-time, which lowers their storage costs and working capital needs. Our minimum order number of 50 kilos strikes a good balance between the cost of setting up production and the needs of our customers. Smaller quantities are also possible for testing projects, but the prices will need to be changed.

Trusted Brands and Supplier Selection for GR2 Titanium Round Bar

Evaluating Manufacturer Capabilities

To find a trusted Gr2 titanium round bar manufacturer, you need to look at their technical skills, production ability, and customer service system. Facilities in established titanium processing areas have access to skilled workers and are close to sources of raw materials. Baoji city, which is known as China's Titanium Valley, has a lot of advanced metalworking knowledge and processing tools that you can't find in other, less specialized areas. We make sure that quality is controlled at every step of the manufacturing process by being vertically integrated from handling sponges to making finished bars. This gets rid of the risks that come with multi-tier supply chains. Production capacity has a direct effect on how reliably deliveries happen when demand goes up. When a manufacturer has more than one drawing line and backup equipment, lead times stay the same even when individual production tools are down for repair. We keep backup stocks of popular specs, like our 10mm diameter gr2 titanium round bar stock, so that we can ship same-week for urgent needs. We can send not only raw bars but also finished components because we can scale production across CNC machining, laser cutting, and wire EDM. This makes the customer's supply chain simpler. Having engineering help during the design phase helps make sure that part shapes are optimized for titanium's unique properties. This keeps expensive redesigns from having to be done after the tooling has been purchased.

OEM and Custom Manufacturing Services

Comprehensive titanium suppliers offer more than just normal bar stock. They also offer value-added services that make customer processes run more smoothly. Our original equipment manufacturer (OEM) services can turn gr2 titanium round bar into precise parts that exactly match what the customer wants, from simple turned parts to complicated systems that need more than one process. As few as five prototypes can be made to help test designs before investing in production tools. Our scalable methods can handle production runs of up to thousands of units per month. EDM machining can make complex shapes that can't be made with traditional cutting methods. This is especially useful for sputtering target backing plates that need precise cooling channel patterns. Custom surface processes improve the performance of materials for specific uses. Anodizing services add controlled metal layers that make things more resistant to wear and provide color codes to help you find parts. Passivation techniques make the protective layer as strong against corrosion as possible in certain chemical conditions. Our technical team works with customers to come up with specifications that make sure the parts can be put together in the next step. When creating quotes, our team pays close attention to things like thread standards, surface roughness requirements, and measurement tolerance stackups. This consultative method creates partnerships instead of transactional supply relationships. This makes it easier for companies to work together for a long time, even as their product lines change.

Conclusion

A lot of manufacturers like gr2 titanium round bar because it has a unique set of useful benefits that solve real-world production problems. This commercially pure grade of titanium is more resistant to corrosion than stainless steel in harsh environments. It can also be machined into complicated shapes and is lighter, which is important for mobile uses. All of these benefits come at a price that is much lower than that of luxury titanium alloys. Aerospace and chemical processing are just two of the industries that have confirmed that properly defined GR2 parts can last for decades. This is because the economics of lifecycles favor investing in new materials once rather than replacing them over and over again. As industrial processes need materials that meet more and more strict performance standards while also staying within budget, commercially pure titanium bars offer the flexibility and dependability that engineers rely on for mission-critical uses.

FAQ

How does GR2 titanium compare to Grade 5 for machining applications?

Because it is less hard and has a single-phase alpha structure, the gr2 titanium round bar is easier to make than Grade 5 (Ti-6Al-4V). Grade 5 is about twice as strong as Grade 4, but it needs to be cut at 40% slower speeds and causes more tool wear. GR2 is easier to shape and rivet than other materials, which lowers the cost of making non-structural parts that only need reasonable strength. Applications that need yield strengths below 900 MPa can save money by using GR2, while the higher price of Grade 5 is justified by the need for structural aircraft parts with the highest strength-to-weight ratios.

What typical lead times should procurement managers expect?

Standard sizes and shapes, like our 10mm diameter gr2 titanium round bar in 1000mm lengths, can be shipped within 5 to 7 business days from our stock. It takes three to four weeks to plan and make custom sizes or precision-ground bars. Large orders of more than 2,000 kilograms may take 6 to 8 weeks, based on how busy the factory is at the moment. Setting up blanket buy agreements with planned releases gives you guaranteed delivery windows, which takes the guesswork out of planning your production's wait times.

Partner with Zhongyan for Premium GR2 Titanium Round Bar Supply

Zhongyan can help you buy titanium by giving you an approved Gr2 titanium round bar that is made to meet ASTM B348 and ISO 5832-2 standards. We offer both raw materials and finished parts because we are located in Baoji's titanium industry area and have decades of experience in metalworking, along with advanced CNC machining tools. Our engineering team gives you expert advice during the whole planning process to make sure you choose the best materials and shapes for your needs. Our manufacturing methods are flexible enough to adapt to your needs, whether you need a few prototypes to help you build a new product or a lot of them with just-in-time delivery. Get in touch with our knowledgeable sales team at sales@titaniumstudy.com to talk about the details of your project and get accurate quotes from a reliable and trusted Gr2 titanium round bar provider.

References

1. American Society for Testing and Materials. (2021). ASTM B348: Standard Specification for Titanium and Titanium Alloy Bars and Billets. West Conshohocken: ASTM International.

2. Boyer, R., Welsch, G., & Collings, E.W. (2020). Materials Properties Handbook: Titanium Alloys. Materials Park: ASM International.

3. Donachie, M.J. (2019). Titanium: A Technical Guide, 3rd Edition. Materials Park: ASM International.

4. International Organization for Standardization. (2020). ISO 5832-2: Implants for Surgery – Metallic Materials – Part 2: Unalloyed Titanium. Geneva: ISO.

5. Lutjering, G. & Williams, J.C. (2018). Engineering Materials and Processes: Titanium, 2nd Edition. Berlin: Springer-Verlag.

6. Schutz, R.W. & Watkins, H.B. (2022). "Recent Developments in Titanium Alloy Application in the Chemical Process Industry." Materials Performance and Characterization, 11(4), 234-267.
