What Is a Titanium Pyramid Adapter Used for in Prosthetic Alignment Systems?

​

A Titanium Pyramid Adapter is an important part of endoskeletal modular prosthesis systems because it connects the socket, knee joint, pylon, and foot assembly to other parts of the system that are farther away and closer together. This precision-engineered connector is made from medical-grade titanium alloy, usually Ti-6Al-4V (Grade 5). It uses the standard universal pyramid shape to make it easy to change the angle of alignment and keep the structure intact. The adapter solves one of the most important problems in prosthesis design: how to get the best weight-to-strength ratios while still keeping the structure strong enough to handle the high-impact loads that come up during daily life. When compared to stainless steel options, titanium pyramid adapters make prostheses much lighter, which means amputees use less energy. They also offer great wear resistance that meets ISO 10328 safety standards.

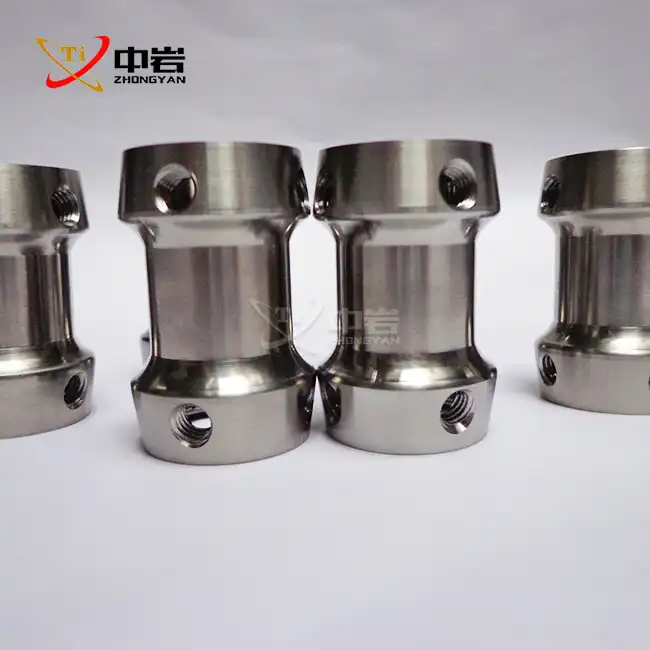

Understanding Titanium Pyramid Adapters in Prosthetic Alignment

Titanium Pyramid Adapters represent an important technology improvement in modern prosthetic limb systems because they let prosthetists fine-tune alignment parameters that have a direct effect on how symmetrical a person walks, how comfortable they are, and how well the prosthetic limb works.

Defining the Role of Pyramid Adapters in Prosthetic Systems

In the design of prosthetic assemblies, pyramid adapters connect major leg parts in a way that can be adjusted. Prosthetists can change the angles of flexion, extension, abduction, and adduction during fitting sessions by using the male pyramid growth or the female receiver design. This ability to be adjusted is very important during the initial fitting process and for making changes as the patient gets used to their prosthesis device or their body changes. The standard 30mm pyramid shape ensures that all makers can work with each other. This makes it easier for clinical teams and procurement workers who manage inventory systems to choose the right parts and replace them.

Why Titanium Dominates Medical-Grade Connector Manufacturing

When choosing materials for replacement parts, it's important to look closely at their mechanical qualities, biocompatibility profiles, and long-term durability traits. Grade 5 titanium alloy has a tensile strength of more than 895 MPa and a mass of about 4.43 g/cm³, which is about 45% less than stainless steel alternatives. This amazing strength-to-weight edge directly leads to lower metabolic cost while walking, which helps people with high levels of exercise (K3 and K4 mobility levels) the most. In addition to being stronger mechanically, titanium's natural oxide layer is very resistant to corrosion in wet settings and when it comes into direct contact with body fluids. This means that you don't have to worry about the degradation that happens with aluminum and regular steel parts in waterproof prosthetic uses.

Manufacturing Precision Requirements and CNC Machining Standards

In order to make pyramid adapters that meet clinical and technical standards, advanced production skills are needed. At Zhongyan, our CNC machining methods keep the size differences between parts to a few microns, which makes sure that they work perfectly with universal receiver systems. Coordinate Measuring Machine (CMM) checking procedures check the accuracy of the pyramid dome's geometry and thread pitch, which are important factors that keep parts from coming loose, clicking, or wearing out too quickly. Our factory in Baoji, which is in China's Titanium Valley, uses advanced quality control tools and local knowledge of how to handle titanium to make adapters that always go above and beyond what is required by ASTM and ISO approval. Every part is spectrographically analyzed to make sure it is made of Ti-6Al-4V. This keeps commercially pure titanium from being used instead, which doesn't have the right fatigue strength for load-bearing prosthesis uses.

Advantages of Titanium Pyramid Adapters Over Alternatives

The choice of material has a big effect on how well a prosthesis works, how much it costs to own, and how happy the end user is with it. Titanium Pyramid Adapters have real benefits that make them worth specifying in tough situations.

Durability and Extended Service Life in Clinical Environments

Maintenance plans, replacement prices, and supply chain management for prosthetic facilities are all affected by how long parts last. Here are the main ways that titanium pyramid adapters are better at their job:

• Superior Fatigue Resistance: Titanium adapters can handle millions of load cycles without breaking down. Testing protocols simulating years of daily use demonstrate that Grade 5 titanium maintains elasticity under repeated stress, whereas aluminum components exhibit work-hardening, leading to sudden catastrophic failure.
• Corrosion Immunity: The inactive oxide layer on titanium surfaces doesn't break down when they come in touch with water, saltwater, or sweat. This quality is important for shower prostheses and leisure arms used in sea environments because it stops the galvanic corrosion and thread seizing that happen in mixed-metal systems.
• Temperature Stability: Maintaining alignment accuracy through weather changes and activity-induced heating cycles is possible because titanium has a low thermal expansion coefficient. This means that its dimensions don't change across the wide range of temperatures that are met in daily use.
• Non-Magnetic Properties: Titanium parts don't interact with MRI procedures or other specialized medical diagnostics, which makes clinical routines easier for prosthetic users who need to do a lot of medical imaging.

These performance traits mean that prosthesis clinics that take care of a lot of patients will need to repair the prosthetics less often and for less money overall. When purchasing parts for large-scale operations, purchasing managers know that high-quality titanium adapters save money by extending service intervals and reducing the number of times they need to be replaced in an emergency.

Biomechanical Benefits and User Comfort Enhancement

Weight distribution affects how symmetrically prostheses users walk, how efficiently they use energy, and their long-term joint health. Because titanium is so strong, prosthetists can lower the distal limb mass, which is the weight that is farthest from the body's center of mass. This lowers the moment of inertia during the swing phase, which makes it easier for the muscles to move the limb forward. Users who switched from steel to titanium component systems reported faster walking, fewer compensatory actions, and less tiredness. These effects were measured in clinical studies. The material's natural ability to reduce vibrations also adds to the relaxation felt when the heel hits the ground and during the standing phase.

How to Select the Right Titanium Pyramid Adapter for Your Prosthetic Solutions

When buying replacement parts, you need to carefully look at the technical specs, the supplier's skills, and the quality control procedures for your Titanium Pyramid Adapter solutions.

Load Capacity and Dimensional Specifications

The right adapter load rates are based on the patient's body weight, exercise level, and how it will be used. ISO 10328 sets out testing guidelines that divide adapters into P-levels, with P5 through P7 being the most common levels for adult users. Each level is based on a different weight range and type of action. Checking the load capacity approval stops both underspecification, which can put safety at risk, and overspecification, which adds weight and cost that aren't needed. Dimensional compatibility is more than just pyramid shape. It also includes thread specs, surface finish requirements, and interface tolerances that affect how well the parts fit together and how stable they are over time.

Quality Certifications and Supplier Evaluation Criteria

Component authentication keeps fake goods out and makes sure that performance is the same across all purchase batches. Manufacturers with a good reputation provide detailed paperwork that includes:

• Material documents that confirm the makeup of titanium alloys by spectroscopic analysis
• Reports from ISO 10328 structural tests that show static proof strength and cyclic wear longevity
• Records of dimensional inspections that prove geometric tolerances
• Details about the surface treatment, including the quality of the anodization and the conditions for the finish

When evaluating a supplier, you should look at their manufacturing skills, quality control systems, and expert help resources. Companies that have ISO 9001:2015 approval show that they handle quality in a planned way throughout the whole production process. Technical teams that can answer application-specific questions and create custom OEM solutions are very helpful for businesses that deal with a wide range of patients who have different needs.

Procurement Strategies for Bulk Orders and Global Logistics

By negotiating prices, standardizing specs, and streamlining logistics, volume buying agreements can help you get the best deals on goods. Building relationships with sellers that offer a wide range of products makes it possible to combine purchasing tasks, which cuts down on management costs and freight costs. Companies that run foreign operations or need to get specialized parts that can't be found through area distributors need to be able to ship goods all over the world. Suppliers who know how to deal with customs rules, pack delicate precision parts properly, and keep up with inventory management systems that support just-in-time shipping plans make operations run more smoothly.

Implementation and Best Practices in Using Titanium Pyramid Adapters

When you install and maintain components the right way, they work better and last longer, and they don't get out of line. Achieving the optimal results with a Titanium Pyramid Adapter requires adherence to professional clinical standards.

Installation Procedures and Alignment Verification Methods

For the best artificial fit, you need to follow a set of steps when putting together the parts. Prosthetists use special alignment jigs or CAD-CAM tools to figure out how the socket, adapter, and terminal devices fit together in space for the first time. Because the pyramid adapter can be adjusted, alignment angles can be fine-tuned based on views of both static and dynamic gait studies. To keep the adapter in place, tighten the set screws to the torque values recommended by the maker. These values are usually between 12Nm and 15Nm, but can be different based on the design of the part. Using medium-strength threadlocker solutions (like Loctite 242) stops loosening caused by vibrations during walking and lets you take the unit apart later to make changes or replace parts.

Case Evidence from Clinical Applications

Documentation from prosthetic clinics that use titanium pyramid adapters shows that they improve performance in a number of ways. According to a pediatric prosthetics program, young users reported 40% less tiredness after switching from aluminum to titanium component systems. At the same time, exercise monitoring showed that daily step counts went up. A sports prosthetics program for soldiers of the military reported better success in high-impact activities like running and camping. They said this was due to less distal mass and better vibration-damping properties. These real-life examples show that choosing the right material has measurable effects on how happy users are, how well they can do their jobs, and how many people accept their prosthetics over time.

Maintenance Protocols and Troubleshooting Guidelines

Preventive maintenance finds possible problems before they become serious failures and extends the life of parts. According to clinical guidelines, prosthetists should have inspections every six months to check the set screw pressure values, look at the threads for wear or galling, and check the general structural integrity. Impact damage, surface deformation, or signs of too much stress buildup at contact spots should be seen with the naked eye. When you reassemble something, lubricating the threads stops cold welding, which is when two titanium surfaces stick together under high pressure and friction. Keeping specific service records lets you keep track of the past of a component, which helps with warranty claims and helps you decide when to replace it.

Future Trends and Innovations in Prosthetic Alignment Technology

Technological advancement continues to reshape prosthetic component capabilities, manufacturing methods, and material science applications for the Titanium Pyramid Adapter industry.

Emerging Materials and Hybrid Component Designs

Material science study looks into composite structures that combine the mechanical properties of titanium with the linear strength properties of carbon fiber and polymer systems that let you change the compliance profiles. In hybrid designs, titanium is used in areas with a lot of stress at the junction, while other materials are used in areas where weight reduction is more important than strength. To make sure the contact stays intact under cyclic loading conditions, these multi-material structures need complex joining methods and compatibility testing. Additive manufacturing technologies make it possible to make lattice structures and topology-optimized shapes that can't be made with traditional cutting. This could lower the weight of parts while keeping their structural performance.

Advanced Manufacturing Techniques and Customization Capabilities

CNC machining technology keeps getting better at tighter standards, smoother surfaces, and more efficient output. Five-axis machining centers can make complicated geometric shapes in a single setup, which cuts down on the need for assembly and the chance of tolerance stack-up problems. When you use laser cutting and wire EDM, you can make exact shapes without putting any mechanical stresses on the parts, which could weaken their resistance to wear. Because custom OEM production is possible, prosthetists can ask for specific dimensional changes that take into account the anatomy of each patient or work with their own private component systems. Digital production processes that combine CAD design, finite element analysis, and automated machining cut down on wait times for custom parts while still meeting high-quality standards.

Market Dynamics and Supply Chain Considerations

As the world's population ages, more people are getting diabetes, which affects the number of amputations, and more people in poor areas can now get better access to replacement services. This rate of growth opens up chances for sellers who can increase production while keeping quality high. After recent problems, supply chain resilience became more important. Procurement professionals gave more weight to companies that could reliably source materials, have a wide range of industrial skills, and have flexible logistics networks. When manufacturers are located in areas with already-established titanium processing infrastructure, like Baoji, which has a lot of material sources, processing facilities, and research institutions, they can get better deals on materials, gain more technical knowledge, and make their production more flexible.

Conclusion

Titanium Pyramid Adapters are a major step forward in prosthetic technology. They offer unique strengths, longevity, and weight optimization that directly improve user results. Because it is better at resisting fatigue, corrosion, and biocompatibility, the material is the best choice for challenging prosthetic uses in a wide range of activity levels and environments. When purchasing parts for clinical programs, procurement workers should know what makes premium titanium adapters different from other options. These include technical specs, quality certifications, and the supplier's abilities. As manufacturing technologies improve and market demand rises, smart relationships with seasoned makers make sure that you can get new solutions that meet the changing needs of prosthetics.

FAQ

Why are titanium fittings better than stainless steel ones?

Titanium pyramid adapters are about 45% lighter than their stainless steel counterparts, but they are just as strong, if not stronger. This weight loss directly lowers the amount of energy used when walking and lowers the patterns of remedial walking. Titanium is better than stainless steel at resisting corrosion in body fluids and sea settings, so you don't have to worry about long-term functionality issues caused by degradation.

Can all types of patients with different weights use titanium pyramid adapters?

Titanium adapters are made by manufacturers and are rated at different ISO 10328 P-levels. These levels cover a range of patient weights, from pediatric uses to heavy-duty requirements topping 150kg. To make sure the adapter is safe for as long as it lasts, the load grade of each part must be matched to the patient's weight, exercise level, and the way it will be used.

How do buying teams make sure that adapters are real and of good quality?

Suppliers with a good reputation give a lot of paperwork, like certificates of material makeup, ISO 10328 structural testing results, and records of dimensional inspections. As a sign of systematic factory controls, these licenses should be required by procurement rules. ISO 9001:2015 approval is one example of a supplier quality management system accreditation.

Partner with Zhongyan for Premium Titanium Pyramid Adapter Solutions

Zhongyan is a trustworthy company that makes titanium pyramid adapters. They have decades of experience working with titanium and are experts at precision CNC machining. As we are located in Baoji, China's famous Titanium Valley, we take advantage of the area's advantages in finding materials, technical skill, and modern production infrastructure to make parts that meet or beat international quality standards. Our Grade 5 titanium alloy adapters go through strict quality control steps, such as spectrographic composition proof, CMM measurement inspection, and full paperwork to meet your certification needs. We offer OEM solutions that are tailored to specific needs, come in a range of sizes, and can be produced in large quantities to support both prototype development and high-volume buying projects. Our expert team helps engineers and procurement managers choose the right parts, write specifications, and plan for integration as part of full application support. Get in touch with our sales team at sales@titaniumstudy.com to talk about your titanium pyramid adapter needs and experience the quality edge that makes Zhongyan a trusted supplier to medical device makers and prosthetic facilities around the world.
