Understanding the fundamental differences between planar titanium targets and rotatable titanium targets is crucial for optimizing your sputtering processes. Planar titanium targets feature a flat, disk-shaped geometry ideal for uniform thin film deposition across smaller substrates, while rotatable titanium targets utilize cylindrical designs that provide enhanced target utilization and extended operational life through continuous rotation during magnetron sputtering. The choice between these configurations significantly impacts deposition rates, film uniformity, target erosion patterns, and overall cost-effectiveness in semiconductor manufacturing and optical coating applications.
Understanding Sputtering Target Geometries
Sputtering target design plays a pivotal role in determining thin film coating quality and process efficiency. The geometry fundamentally affects plasma distribution, target erosion characteristics, and substrate coverage patterns within the vacuum chamber.
Planar configurations represent the traditional approach to physical vapor deposition. These targets mount perpendicular to the substrate, creating a direct line-of-sight deposition path. The flat surface enables straightforward magnetron placement and uniform magnetic field distribution across the target face.
Rotatable designs revolutionized target utilization by introducing cylindrical geometry. During operation, the target rotates continuously, exposing fresh material to the plasma source and preventing localized erosion patterns that plague stationary configurations.
If you need consistent coating thickness across large areas, planar targets offer superior control. If you prioritize material efficiency and extended operational cycles, rotatable systems provide better value proposition.
Design and Construction Differences
The structural variations between these target types create distinct performance characteristics. Planar titanium targets typically measure 2-14 inches in diameter with thickness ranging from 3-10mm. The flat geometry requires robust backing plate integration, commonly using copper or stainless steel bonding for thermal management.
Surface morphology specifications for planar targets demand Ra ≤0.4μm finish quality. This precision machining ensures uniform plasma interaction and minimizes particle generation during reactive sputtering processes. The target mounting system must accommodate thermal expansion while maintaining perfect flatness across the entire surface.

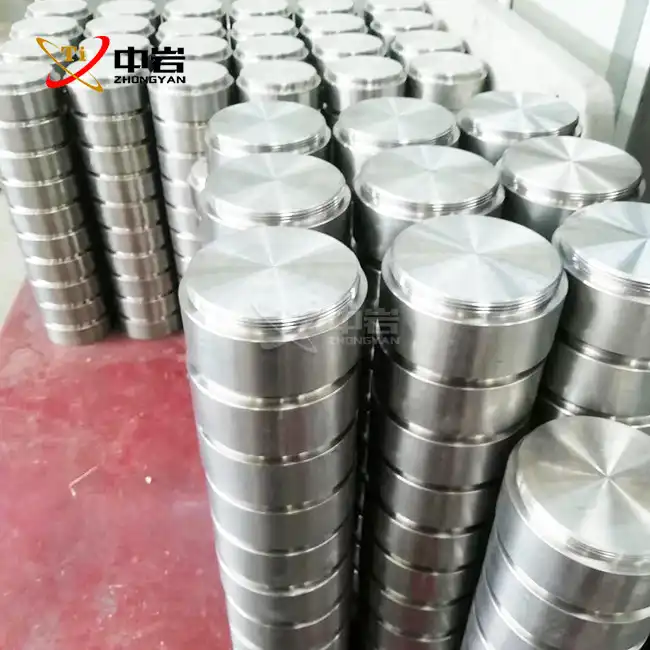

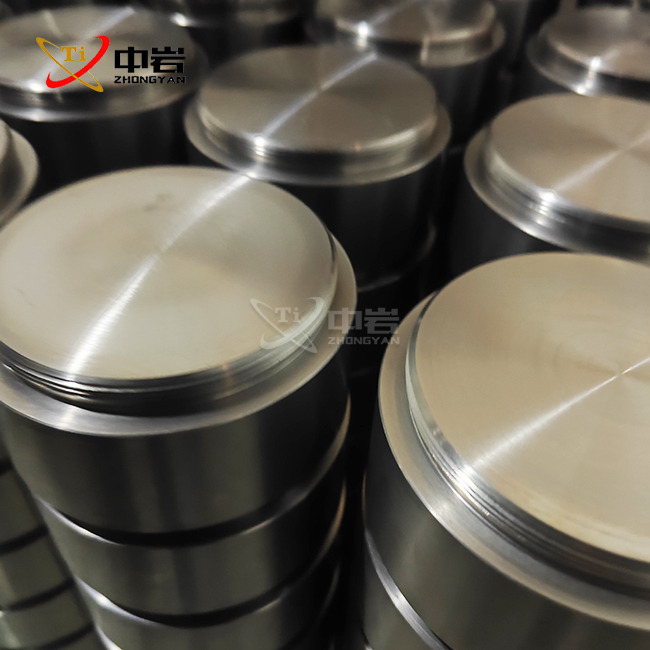

Rotatable configurations employ cylindrical titanium construction with diameters spanning 3-8 inches and lengths up to 500mm. The rotating mechanism introduces mechanical complexity but enables target utilization rates exceeding 80%, compared to 20-30% typical for planar designs.
Grain structure control becomes critical in rotatable targets. Manufacturers optimize titanium alloy composition and heat treatment to prevent cracking under rotational stress. The cylindrical geometry distributes mechanical loads more evenly than flat configurations.
If you need simplified installation and maintenance procedures, planar targets offer operational advantages. If you require maximum material utilization and extended replacement intervals, rotatable systems justify their higher initial investment.
Performance Comparison in Thin Film Deposition
Deposition rate characteristics vary significantly between target geometries. Planar targets typically achieve 5-15 nm/minute for titanium thin films at standard power densities of 2-5 W/cm². The consistent target-to-substrate distance maintains predictable deposition kinetics throughout the target lifecycle.
Test data from semiconductor manufacturing facilities indicates planar systems deliver ±2% thickness uniformity across 200mm wafers when properly optimized. This precision stems from the stable geometry and well-characterized erosion patterns inherent to flat target designs.
Rotatable targets demonstrate superior deposition rates, often reaching 20-40 nm/minute due to enhanced plasma density and improved target utilization. The continuous rotation prevents target poisoning in reactive atmospheres, maintaining consistent sputtering yield throughout extended production runs.
Film uniformity measurements from rotatable systems show ±5% thickness variation across large substrates. While slightly less uniform than planar configurations, the increased throughput often compensates for this minor compromise in critical applications.
Target erosion profiles reveal dramatic differences between configurations. Planar targets develop characteristic racetrack patterns, concentrating erosion in specific zones. Rotatable designs achieve uniform material removal across the entire target surface, maximizing titanium utilization.
If you need exceptional thickness uniformity for precision optical coatings, planar targets excel in this application. If you prioritize high-volume production with cost-effective material usage, rotatable systems offer compelling advantages.
Applications and Industry Use Cases
Semiconductor manufacturing relies heavily on planar titanium targets for critical applications. Advanced integrated circuits require precise barrier layer deposition with atomic-level thickness control. The stable deposition environment provided by planar geometry meets these demanding specifications.
Display technology applications favor rotatable targets for large-area coating processes. OLED and LCD panel production benefits from the high deposition rates and extended operational cycles achievable with cylindrical target designs. The uniform erosion characteristics maintain consistent coating quality across production batches.
Optical coating applications present mixed requirements depending on substrate size and precision demands. Anti-reflective layers for precision optics typically utilize planar targets, while architectural glass coating favors rotatable systems for their superior throughput capabilities.
Aerospace component coatings demand exceptional reliability and traceability. Turbine blade protective layers often specify planar target processes due to their proven consistency and well-documented performance characteristics in critical applications.
Solar cell manufacturing increasingly adopts rotatable targets for transparent conductive oxide layers. The high deposition rates and cost-effective operation align well with the volume requirements and competitive pressures in photovoltaic production.
If you need validated processes for mission-critical applications, planar targets provide extensive operational history. If you require cost-effective scaling for high-volume manufacturing, rotatable systems offer superior economics.
Cost Analysis and Economic Considerations
Initial investment costs favor planar target systems due to their simpler mechanical design. A complete planar sputtering system typically costs 15-25% less than equivalent rotatable configurations. The reduced complexity translates to lower maintenance requirements and simplified operator training.
Target material costs reveal the economic advantage of rotatable designs. With 80%+ utilization rates, rotatable targets reduce titanium consumption per unit area coated by 60-70% compared to planar alternatives. This material efficiency becomes increasingly important as titanium prices fluctuate in global markets.
Operational expenses include power consumption, maintenance intervals, and production downtime. Planar systems consume 20-30% less electrical power due to lower plasma densities required for stable operation. However, frequent target replacements increase labor costs and production interruptions.
Throughput calculations demonstrate rotatable target advantages in high-volume scenarios. Production facilities processing >10,000 wafers monthly typically achieve 30-40% cost reduction per unit when utilizing rotatable titanium targets despite higher capital requirements.
Quality-related costs impact the total economic picture. Planar targets reduce rework rates in precision applications, while rotatable systems minimize material waste through superior utilization efficiency. The optimal choice depends on specific application requirements and production volumes.
If you operate low-volume, high-precision manufacturing, planar targets offer better cost control. If you manage high-volume production lines, rotatable systems provide compelling return on investment through material savings.
Zhongyan's Planar Titanium Target Advantages
Zhongyan delivers exceptional planar titanium targets that set industry standards for purity and performance. Our manufacturing facility in Baoji city leverages China's Titanium Valley resources to produce targets with ≥99.995% purity levels, ensuring superior film quality and minimal contamination in critical applications.
- Ultra-High Purity Standards: Our planar targets achieve titanium purity levels of 99.995% through advanced vacuum arc remelting processes, significantly reducing impurity-related defects in thin film coatings.
- Precision CNC Machining: State-of-the-art CNC milling equipment delivers Ra ≤0.4μm surface finish with dimensional tolerances of ±0.05mm, ensuring optimal plasma interaction and uniform sputtering performance.
- Custom Dimensional Capabilities: We manufacture planar targets from 2" to 14" diameter with thickness options from 3mm to 10mm, accommodating diverse sputtering system configurations and substrate requirements.
- Advanced Bonding Solutions: Our targets feature expertly applied backing plates using copper, stainless steel, or aluminum bonding, optimized for thermal conductivity and mechanical stability during operation.
- Comprehensive Quality Certification: All products meet ISO 9001:2015 standards with full compliance to ASTM and AMS specifications, supported by detailed material certificates and compositional analysis reports.
- Optimized Microstructure: Hot Isostatic Pressing (HIP) processing achieves density ≥4.50 g/cm³ with grain size ≤50 μm, delivering consistent sputtering rates and extended target life.
- Low Particle Generation: Our refined manufacturing process minimizes surface defects and inclusions, reducing particle contamination in sensitive semiconductor and optical coating applications.
- Flexible OEM Solutions: We provide custom packaging, branding, and dimensional specifications to meet unique customer requirements while maintaining our rigorous quality standards.
- Rapid Prototyping Capabilities: Our integrated R&D and manufacturing facility enables quick turnaround of prototype targets for process development and qualification activities.
- Technical Support Excellence: Our experienced engineering team provides application-specific guidance on target selection, mounting procedures, and process optimization to maximize your sputtering system performance.
Selection Criteria for Your Application
Choosing between planar and rotatable titanium targets requires careful evaluation of multiple factors. Substrate size represents a primary consideration, with planar targets excelling for applications under 300mm diameter while rotatable systems handle larger areas more effectively.
Production volume significantly influences the optimal choice. Operations processing fewer than 1,000 substrates monthly often find planar targets more cost-effective due to lower capital requirements. Higher volumes benefit from rotatable target efficiency despite increased system complexity.
Film thickness requirements impact target selection. Ultra-thin coatings below 50nm benefit from planar target stability and precise control. Thicker films above 500nm utilize rotatable systems more efficiently due to their superior deposition rates and material utilization.
Vacuum technology compatibility varies between target types. Existing magnetron sputtering systems may require significant modifications to accommodate rotatable targets, while planar replacements typically integrate seamlessly with current equipment.
Quality specifications drive many selection decisions. Applications demanding thickness uniformity better than ±3% typically require planar targets. Less stringent requirements allow rotatable systems to provide cost advantages through improved throughput.
If you need immediate implementation with existing equipment, planar targets offer plug-and-play compatibility. If you plan system upgrades or new installations, rotatable targets provide long-term operational advantages.
Conclusion
The choice between planar and rotatable titanium targets fundamentally impacts your sputtering process efficiency, cost structure, and coating quality outcomes. Planar titanium targets excel in precision applications requiring exceptional uniformity and proven reliability, while rotatable designs offer superior material utilization and throughput for high-volume production environments. Understanding these key differences enables informed decisions that optimize your thin film deposition processes while balancing performance requirements with economic considerations. Zhongyan's expertise in manufacturing premium planar titanium targets ensures you receive the quality and technical support necessary for successful implementation across demanding semiconductor, optical, and aerospace applications.
Partner with Zhongyan for Superior Planar Titanium Target Solutions
Zhongyan stands as your trusted planar titanium target manufacturer, combining decades of titanium expertise with cutting-edge manufacturing capabilities to deliver exceptional sputtering solutions. Our location in China's Titanium Valley provides unmatched access to premium raw materials and specialized processing technologies that ensure consistent quality across every target we produce.
Our comprehensive manufacturing capabilities extend beyond standard planar targets to include custom CNC-machined components, titanium rods, plates, tubes, and wires. This vertical integration enables us to control quality at every production stage while offering competitive pricing and rapid delivery schedules that meet your project timelines.
Quality assurance remains paramount in our operations, with rigorous testing protocols including ICP-MS purity analysis, ultrasonic defect scanning, and comprehensive dimensional verification. Every planar titanium target ships with detailed material certificates documenting composition, mechanical properties, and surface finish characteristics.
Our technical team provides valuable application support, helping optimize your sputtering processes for maximum efficiency and film quality. We understand the unique challenges facing semiconductor, optical, and aerospace manufacturers, offering tailored solutions that address your specific deposition requirements.
Ready to enhance your thin film deposition processes with premium planar titanium targets? Our experts are prepared to discuss your application requirements and recommend optimal target specifications. Contact us at sales@titaniumstudy.com to explore how Zhongyan's superior titanium solutions can improve your production efficiency and coating quality.
