Lightweight Titanium Flanges for Aerospace & Marine Use

The use of lightweight titanium flanges has revolutionized aircraft and naval engineering. These flanges offer a unique mix of strength, corrosion resistance, and weight reduction that other materials can't match. These unique parts are made from high-quality titanium alloys like Grade 2 and Grade 5. They have amazing performance qualities, like a strength-to-weight ratio that is 40% higher than steel options. They also seal very well in harsh settings. These parts are necessary for important uses where reducing weight, increasing fuel economy, and ensuring long-term dependability are top priorities.

Understanding Titanium Flanges for Aerospace & Marine Applications

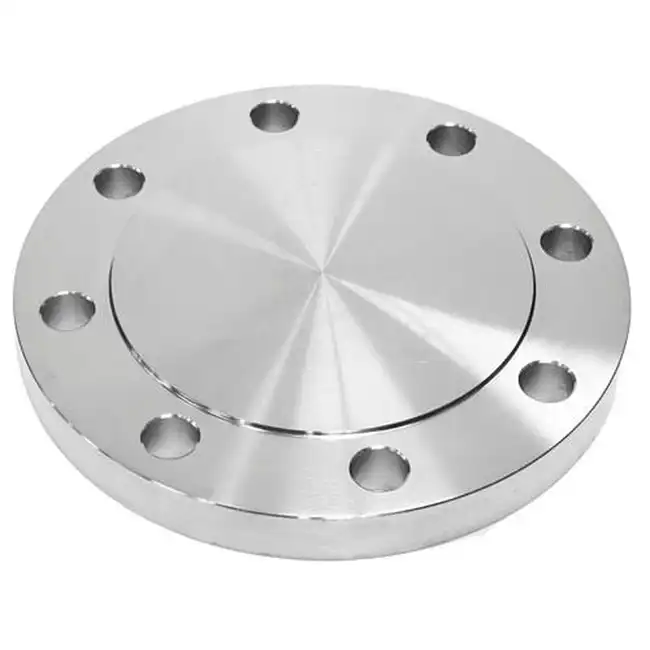

Precision-engineered parts made from titanium alloys are called titanium flanges. They are used as important connection points in piping systems for marine and aircraft uses. Specialized parts made of titanium use the metal's natural qualities to solve problems in certain industries that regular materials can't.

Material Composition and Grades

Grade 2 (ASTM B381) and Grade 5 (Ti-6Al-4V) are the types that are most often used for aircraft and marine titanium flanges. Grade 2 titanium is very good at resisting rust and can be shaped easily, which makes it perfect for naval settings where it is constantly exposed to salt water. This type is very resistant to chloride stress corrosion cracking, which is a typical way for regular stainless steel parts to break. With a tensile strength of up to 895 MPa, grade 5 titanium has higher mechanical strength, which makes it ideal for high-pressure aircraft uses.

Flange Types and Configurations

Several types of titanium flanges are often used in aerospace and naval applications. Weld neck flanges are very strong for high-pressure systems, and their curved hub shape makes them great at distributing stress. The installation of slip-on flanges is easy, and they are strong enough for mild pressure uses. Blind flanges are fixed closures for pipe systems. They are especially useful in naval settings where rust resistance is important.

Standards and Compliance Requirements

Titanium plates made for use in space and on ships must meet strict international standards. ASME B16.5 sets the size and pressure limits for pipe flanges, and ASTM B381 tells us what materials are needed to make forgings out of titanium and titanium alloy. These standards make sure that products from different companies work together and promise that they will work reliably in serious situations.

Comparing Titanium Flanges with Other Metal Flanges for B2B Buyers

When procurement managers know how titanium flanges work differently from other materials, they can use that information to make choices that are best for both short-term prices and long-term business efficiency.

Weight and Fuel Efficiency Impact

Titanium flanges are much lighter than flanges made of other materials. This has a direct effect on running costs in aerospace uses. A standard 6-inch titanium flange weighs about 40% less than a stainless steel equivalent. This means that over the life of an airplane, it will save a lot of fuel. In naval uses, lowering the weight of a vessel makes it more efficient and increases its payload capability.

Corrosion Resistance Performance

In chloride-rich settings like those found in naval uses, titanium flange corrosion protection is superior to that of stainless steel and carbon steel options. Titanium creates a steady, passive oxide film (TiO2) that fixes itself when it gets broken, protecting itself from corrosive attack. This feature gets rid of the pitting and cavity rust issues that stainless steel flanges often have when they are used in salt water.

Lifecycle Cost Analysis

Although titanium flanges cost more to buy at first than steel ones, their longer service life and lower upkeep needs make them more cost-effective in the long run. Studies done by outside groups have shown that titanium flanges can last 300–500% longer than stainless steel ones in harsh settings. This can save a lot of money because they don't need to be replaced as often and don't need as much upkeep.

Mechanical Performance Characteristics

Even when the temperature drops to -196°C, titanium plates keep their mechanical qualities. They can also withstand temperatures as high as 400°C. This temperature stability makes sure that sealing works well and structures stay together across a wide range of operating temperatures in nautical and aircraft systems.

How to Choose and Procure Titanium Flanges for Your Business

To buy titanium flanges successfully, you need to carefully look at the technical specs, the supplier's skills, and the quality control procedures to make sure they work well and are reliable.

Technical Specification Requirements

Key technical factors that procurement managers should include are pressure class rates (ANSI 150–600), size standards (1"–24" diameter range), and material certifications. Depending on the purpose and pressure needs, thickness standards are usually between 10 and 40 mm. The requirements for the surface finish, whether it's glossy or matte, should match the requirements for closing and appearance.

Supplier Evaluation Criteria

Procurement teams should look at a supplier's manufacturing skills, quality licenses, and technical knowledge when choosing titanium flange providers. Suppliers must show that they follow the ISO 9001:2015 quality management system and have the right material approvals, such as ASTM B381 for titanium forgings. Advanced CNC machining, accurate drilling, and the right heat treatment tools should all be part of the manufacturing process.

Custom Manufacturing Considerations

Standard sources don't have all the titanium flange combinations that are needed for many aircraft and marine uses. Suppliers who can do both OEM and ODM can make custom solutions with things like different sizes, special surface treatments, and different metal compositions. Custom production agreements make it possible to improve flange designs to meet the needs of particular applications while still meeting industry standards.

Pricing and Volume Strategies

Titanium flange prices are based on the cost of raw materials, the difficulty of production, and quality standards. Strategies for buying in bulk can cut unit costs by a lot, especially for regular setups. Long-term supply deals keep prices stable and make sure that materials are always available for important uses.

Installation and Maintenance Best Practices for Titanium Flanges

Titanium flanges work best and last as long as they are installed and maintained correctly. This also ensures that they are reliable and safe to use.

Surface Preparation and Alignment

Before installation can begin, the surfaces of the fitting flanges must be carefully prepared to ensure the best binding performance. All areas should be cleaned to get rid of dirt, scale, or oxidation that could make it harder for the gasket to close. The sides of flanges need to be checked to make sure they are flat and that the surface finish meets the requirements. Alignment that is done right keeps stress from building up and makes sure that the seal is compressed evenly.

Torque Application Procedures

Titanium plates need to be torqued in a certain way in order to close properly without putting too much stress on the metal. To make sure the seal is compressed evenly, the bolts should be tightened in a cross-pattern order. The size of the flange, the pressure number, and the type of seal should be used to figure out the torque values. Too much tightening can hurt titanium threads or cause dangerous stress concentrations.

Preventive Maintenance Strategies

Regular inspections should include looking at the sides of the flanges, the state of the gaskets, and the strength of the bolts. Titanium's resistance to rust takes away many of the maintenance worries that come with steel flanges, but following the right checking procedures will make sure that any problems are found quickly. When to change a gasket should depend on the manufacturer's instructions and the conditions of use.

Performance Monitoring

As part of ongoing performance tracking, pressure tests, leak finds, and assessments of structural stability are done. Titanium flanges are usually very stable over a long period of time, but tracking procedures make sure they stay safe to use throughout their long service life.

Future Trends and Innovations in Titanium Flanges for Aerospace & Marine Use

Titanium flange powers are constantly being improved by new technologies and manufacturing innovations, leading to increases in performance, efficiency, and variety of uses.

Additive Manufacturing Developments

Additive manufacturing technologies are changing the way titanium flanges are made by making it possible to make shapes with complicated geometries and a better fit than was possible with traditional manufacturing. 3D printing lets you optimize the shape, which lowers the weight while keeping the structure strong. Because of these improvements in manufacturing, it is now possible to make integrated flange systems with built-in features like cooling channels or mounting places for sensors.

Advanced Alloy Development

The main goal of research into new titanium alloy mixtures is to improve certain qualities for use in space and on the water. Beta titanium metals are better at shaping and are stronger, while titanium matrix composites are better at being stiff and stable at high temperatures. Titanium flanges can now be used in more challenging situations thanks to these material advancements.

Surface Treatment Innovations

Advanced surface treatment methods improve the performance of titanium flanges by making them less likely to break down, reducing friction, and protecting against corrosion better. Plasma nitriding and physical vapor deposition coatings give more security in harsh settings while keeping the benefits of titanium substrates.

Market Dynamics and Demand Drivers

More and more people are using lightweight materials that save fuel and cut down on pollution because they are seen as better for the earth. Tougher rules about the environment force the marine and aircraft businesses to use materials that can meet new standards. More and more titanium flanges are being used, which is in line with a larger trend in the building industry toward high-performance, long-lasting options.

Conclusion

For aircraft and marine uses that require exceptional performance, dependability, and longevity, lightweight titanium flanges are the best choice. Their high strength-to-weight ratio, excellent corrosion resistance, and long service life give them big operating benefits that make their starting cost worth it. Companies can use these high-tech parts to make big changes in system performance and operating efficiency by carefully choosing the right grades, following the right installation steps, and forming strategic partnerships with suppliers. Titanium technology and production methods are always getting better, which means that these parts will always be at the cutting edge of aircraft and marine engineering solutions.

FAQ

Can titanium flanges withstand harsh marine environments?

Because they are so resistant to rust, titanium flanges work great in coastal settings. Titanium surfaces naturally form a passive oxide film that protects them better from seawater, salt spray, and chloride attack than stainless steel options. Because of this, they work great for platforms in the ocean, filtration plants, and marine pipe systems.

What customization options are available for aerospace applications?

To meet the needs of a particular application, titanium flanges for aerospace can be highly modified. Custom choices include changing the sizes, applying special finishes to the surface, setting your own pressure limits, and connecting with your own connection systems. OEM makers can make custom solutions that get the best weight, speed, and compatibility with systems that are already in use on airplanes.

How do buyers make sure that the seller is real and that the products are good?

Buyers should check that a dealer has the right certifications, such as ISO 9001:2015 quality control systems and ASTM B381 material compliance. Ask for records of material testing, reports on dimensional checking, and proof of pressure testing. Suppliers with a good reputation keep quality control records and provide full tracking paperwork throughout the manufacturing process.

Partner with Zhongyan for Superior Titanium Flange Solutions

Zhongyan is one of the best companies that makes its own and other precision-engineered parts for use in aircraft and marine applications. Our cutting-edge factory in Baoji, China, uses advanced CNC grinding and strict quality control procedures to make products that are better than the norm in the industry. We offer the dependability and performance that your important uses need with a wide range of material approvals, such as ASTM B381 and ISO 9001:2015 compliance. Our expert engineering team works directly with clients to create unique solutions that meet their specific needs for weight, strength, and resistance to rust. Get in touch with our experts at sales@titaniumstudy.com to talk about your needs for titanium flanges and find out how our superior production skills can help your project succeed.
