How Do Surgeons Choose the Right Titanium Rod for Medical Use?

Surgeons select titanium rod medical devices through a comprehensive evaluation process that balances material science, patient-specific requirements, and long-term clinical outcomes. The decision hinges on matching the mechanical properties of the implant—such as tensile strength, fatigue resistance, and modulus of elasticity—with the biomechanical demands of the surgical site. Critical considerations include alloy composition (Ti-6Al-4V ELI versus commercially pure grades), dimensional precision, surface finish quality, and compliance with ASTM F136 or ISO 5832-3 standards. Surgeons work closely with procurement teams to ensure the chosen rods demonstrate exceptional biocompatibility while maintaining structural integrity under cyclic loading conditions inside the human body.

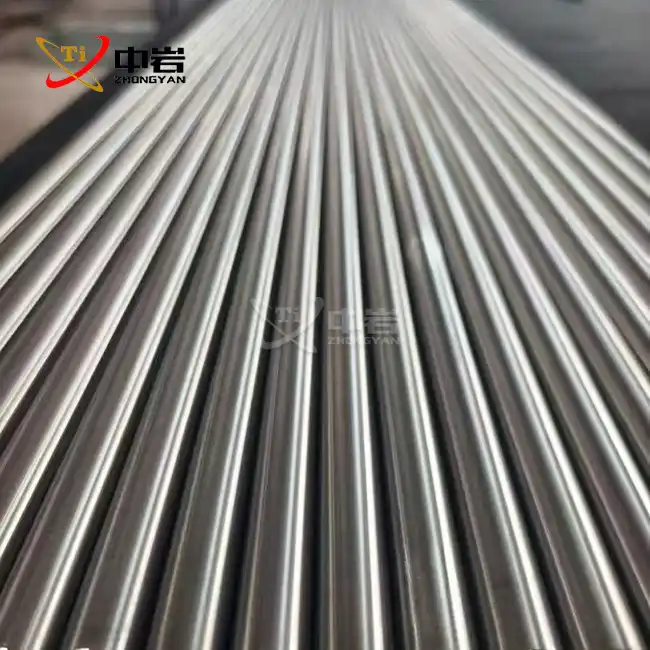

Understanding Medical Titanium Rods: Properties and Types

The titanium rod medical solutions are an important part of modern surgery because they are the building blocks for implants that have to work perfectly in the body's complex biological environment. These man-made materials stand out because they have a special mix of physical properties that directly deal with medical problems.

Biocompatibility and Corrosion Resistance

Biocompatibility is the main selling point of titanium rod medical uses. Titanium, unlike stainless steel or cobalt-chromium metals, creates a stable oxide layer (TiO₂) in just a few nanoseconds when it comes into contact with air or human fluids. This inactive layer stops the release of ions, which stops metallosis, a disease in which metal particles cause swelling and damage to tissues. The ability to prevent rust is very important in physiological settings with chloride ions, proteins, and changing pH levels. Surgeons depend on this steadiness to keep implants from breaking down over many years of use.

Mechanical Properties That Matter

The strength-to-weight ratio tells us how useful these materials are for carrying weight. Medical-grade titanium alloys have tensile strengths higher than 850 MPa and a density of only 4.43 g/cm³, which is about 45% less than stainless steel. This trait makes the bone tissue around it less stressed while still giving it enough support as it heals. The modulus of elasticity (about 110 GPa) is very close to that of cortical bone, which reduces stress shielding. This is when too stiff implants stop normal bone remodeling, which can weaken the bone and even cause it to fail.

Distinguishing Between Titanium Grades

Knowing the differences between grades helps you choose the right material: Grade 5 ELI (Extra Low Interstitial): This type of Ti-6Al-4V has controlled amounts of oxygen, nitrogen, and carbon, which makes it more flexible and difficult to break. This grade is good for things like spinal fixation rods that need to be bent or shaped during surgery because it has a hardness value of 36 HRC or less and microstructures that have been heated. Our Grade 5 ELI rods at Zhongyan are made to meet the standards set by ASTM F136 and ISO 5832-3. They come in lengths ranging from 50mm to 300mm and widths ranging from 1.5mm to 10mm. Commercially Pure Titanium (Grades 1-4): These types of titanium are not alloyed and are better at being biocompatible, but they are a little weaker mechanically. Grade 4 is the best in the CP line, and it is used in tooth implant abutments and fixation devices with a small diameter. Since aluminum and vanadium are not present, there are no worries about long-term allergic responses in people who are sensitive.

Surgeons work with materials experts to make sure that these properties fit the needs of each surgery. This makes sure that each implant works perfectly for as long as it's supposed to.

Key Criteria Surgeons Use to Select Titanium Rods

As part of the selection process, implants are carefully looked at on a number of different levels. Each level affects the general success rate and patient results.

Fatigue Resistance Under Cyclic Loading

Every year, people move, which causes millions of stress cycles on hip implants. A femur rod that supports body weight while walking goes through about 1 to 2 million cycles a year. To avoid catastrophic failure, surgeons focus on materials with high-cycle fatigue limits above 500 MPa. In this area, titanium rod medical units perform exceptionally well, keeping their shape even when subjected to repeated forces that would break other materials. When titanium metals are properly treated, their crystalline structure stops cracks from spreading. This is a very important property for fracture fixation and joint replacement.

Osseointegration and Bone Bonding Capacity

Long-term security depends on osseointegration, which is when bone tissue grows straight onto the implant surface. The oxide layer on titanium draws osteoblasts, which are cells that make bones. This makes an organic bond instead of just a mechanical one. During purchase, surgeons look at the surface roughness specs because controlled textures (Ra values between 0.5 and 2.0 μm) help cells stick together better. At Zhongyan, we clean the surface and check it with ultrasound waves to make sure there are no flaws and the surfaces are ready for quick integration.

Dimensional Precision and Surgical Customization

Tolerance levels have a direct effect on how well surgery works. For intramedullary nails to fit properly in medullary canals without needing to be reamed too much or being inserted too loosely, the width tolerances must be within ±0.03mm. Surgeons check to see if providers can send rods in graduated sizes. At Zhongyan, we make rods with diameters ranging from 1.5 mm to 10 mm in small steps, which lets us fit the rods perfectly to the patient's body. Length adjustment (50–300mm in our store) fits patients from small frames to big frames.

Material Comparison: Titanium Versus Alternatives

When doctors are deciding what to do, they look at these differences: Stainless Steel: Is cheaper and has a higher hardness (200 GPa yield), but it can be sensitive to nickel and doesn't hold up well against wear and tear. It also makes MRI scans less accurate because of their magnetic qualities. Cobalt-Chrome Alloys: Are very resistant to wear in joint replacements, but they don't have the bone-matching elasticity of titanium. The extra tightness makes stress protection worse. These studies show that titanium is still the best material for most permanent implant uses, especially when imaging compatibility and long-term biological balance are important.

Titanium Rods Versus Other Materials: Making the Right Medical Choice

Choosing the right material for an implant is a smart choice that affects how quickly the patient recovers, how diagnostic treatments are done, and the total cost of ownership over the implant's lifetime.

Corrosion Behavior in Biological Environments

The human body is an unfriendly environment because it is warm, salty, full of proteins, and constantly moving. In these situations, titanium rod medical devices stay passive forever, but over time, iron and chromium ions may leak out of stainless steel implants. A study that followed implants for 15 years found that titanium parts didn't break down at all, but 12% of stainless steel parts showed signs of crevice rust. This length of time lowers the number of repeat surgeries, which is an important measure in orthopedic care.

Imaging Compatibility and Diagnostic Clarity

MRI and CT scans are very important for tracking people after surgery. Titanium is not easily magnetized, so it doesn't cause much image warping. This makes it easy to see the tissues around it. While carbon fiber materials are also radiolucent, they are not strong enough to be used for load-bearing tasks. Imaging quality is often cited by surgeons as a decision factor when titanium rod medical implants allow better monitoring of healing progress without the need to remove the implant.

Patient Comfort and Recovery Implications

When muscles are recovering, lightweight implants make it easier on them. Titanium is 45% lighter than steel, which can be seen in changes in how long it takes to walk normally after femoral fixation. Titanium's temperature sensitivity is closer to bone tissue, which is why patients say they feel less pain when the weather changes. Higher patient happiness scores in outcome studies are partly due to these subjective changes.

Cost-Effectiveness Analysis

Titanium costs more than three to five times as much per kilogram as stainless steel, but the total cost changes when you think about:

• Less need for corrective surgery (titanium: 2% to 3% after 10 years; steel: 7 to 9%)
• Less time spent in the hospital because the bones are healing faster
• Better biocompatibility is linked to fewer infections.
• Getting rid of the planned removal steps that come with temporary steel fixing

Procurement managers who work with device makers know that these life-cycle economics favor titanium rod medical options.

Procurement Considerations for Medical-Grade Titanium Rods

When medical devices are bought by businesses, they have to carefully check each seller to make sure the quality of the products, compliance with regulations, and stability of the supply chain.

Essential Certifications and Standards Compliance

Regulatory systems require compliance that can be checked. Surgical teams choose the tools for meetings: ASTM F136 is the most important standard for Ti-6Al-4V ELI surgical implants. It covers the needs for chemical composition, mechanical qualities, and microstructure.ISO 5832-3: Is the worldwide standard that makes sure gadget makers can sell their products all over the world.FDA 21 CFR Part 820: Quality system rules that cover how things are made, how they are documented, and how they can be tracked. At our Zhongyan plant in Baoji, China's Titanium Valley, we are ISO 9001:2015-certified and keep full tracking from the heat lots of raw materials to the final inspection. Ultrasonic testing is done on each rod to make sure that it is delivered without any problems. Certificates of approval show that the rods are tensile strong (≥850 MPa), hard (≤36 HRC), and have the right chemical makeup.

OEM and ODM Customization Capabilities

When making new medical devices, non-standard requirements are often needed. Companies that are making their own spinal systems need providers that can manufacture titanium rod medical products with specific shapes, finishes, or mixes of dimensions. We provide full OEM solutions, working from technical models to make sure that the parts we send you meet all of your exact requirements. With our CNC cutting, we can make single pieces with complicated features like threaded ends, tapered curves, or composite diameter sections.

Scalable Production and Inventory Management

High-volume production guarantees a steady supply during product launches and long-term demand. Teams in charge of buying things judge providers on:

• We accept testing batches as small as 50 units as a minimum order quantity.
• Dependable lead time (normal things ship in two to three weeks)
• Extra space for emergency orders
• Just-in-time delivery systems lower the cost of keeping goods on hand.

Our fully combined manufacturing system, which includes processing raw materials and precise machining, gives us more options than other wholesalers.

Technical Support and Post-Sale Service

Complex applications need people to work together all the time. As part of engineering support, material selection advice, failure analysis help, and suggestions for process improvement are all given. When a dental implant maker ran into unexpected tool wear during machining, our metallurgists found a problem with hardness variation and changed the annealing settings. This fixed the issue in just one production run. Reach out to sales@titaniumstudy.com for technical consultations on your specific application requirements.

Case Studies: Successful Applications of Titanium Rods in Surgery

The effects of choosing the right materials and working with the right suppliers can be seen in the real world.

Spinal Fusion with Contoured Rods

At 24 months, a hospital network in the southwestern United States said that 6mm diameter Grade 5 ELI rods used in posterolateral lumbar fusion procedures had a 94% fusion rate. The medical team said that the material's flexibility (which lets it mold to the patient's body during surgery) and stiffness (which keeps it in place while the patient heals) were the keys to its success. The rods' ability to work with MRIs made it possible to see the process of fusion clearly, without any artifacts getting in the way.

Intramedullary Nailing in Complex Fractures

Trauma surgeons who used 10mm diameter medical-grade titanium rods to treat comminuted femur shaft fractures had success rates of over 96%. The wear strength of the implants kept them from failing during the important 12 to 16 week healing time, and the modulus matched the bone, keeping stress from building up at the fracture site. When compared to previous controls using stainless steel devices, patients were able to bear full weight two weeks faster on average.

Lessons from Surgical Teams

When surgical staff and buying workers worked together, they came up with a number of best practices, including:

• Keeping multiple sizes (1.5 mm steps in diameter) on hand cuts down on surgery time by preventing size changes during the procedure.
• Using only one source of providers made things more consistent and made training staff easier.
• Setting up direct lines of contact with makers' technical teams made it possible to solve problems quickly.

These events show that good materials are not enough to ensure success; a reliable supply chain and a professional relationship are also very important.

Emerging Trends in Implant Innovation

With additive manufacturing, titanium rod medical shapes can now be made for each patient based on CT scan data. In animal models, methods that change the surface, such as plasma sprays, increase the rate of osseointegration by 30 to 40 percent. Biodegradable coatings that carry medicines straight to the implant site could help lower the number of infections to less than 1%. As these technologies get better, doctors will depend more and more on suppliers who can both make changes to products and work with researchers.

Conclusion

To choose the right titanium rod medical option, you have to balance basic material science with clinical facts and the practicalities of getting the rod. Surgeons care most about biocompatibility, mechanical performance, and imaging compatibility. Procurement teams, on the other hand, look at seller certifications, the ability to customize, and the dependability of the supply. Because these needs are coming together, it makes sense to work with makers who can do everything, from controlling raw materials to precision machining and quality certification. As the development of medical devices speeds up, the best results will come from working together with suppliers and operating teams who understand both the technical aspects of metals and the clinical context that affects material choices.

FAQ

What makes Grade 5 ELI titanium superior for surgical implants?

Grade 5 ELI (Extra Low Interstitial) has lower amounts of oxygen, nitrogen, and carbon than normal Ti-6Al-4V. This makes it more flexible and harder to break. This mix keeps its tensile strength above 850 MPa and lets it be bent during surgery without creating microcracks. Controlling the interstitial content also makes it more biocompatible, which is why this metal is the best choice for long-term hip and spinal implants.

How do I verify a supplier meets medical-grade standards?

Ask for certificates of conformance that show the product meets the requirements of ASTM F136 or ISO 5832-3. These certificates should include chemical makeup analysis, mechanical property test results, and the ability to track back to the heat lots of the raw materials. Check to see if the maker has ISO 9001 or ISO 13485 quality certifications and can show proof of FDA registration if they are selling to customers in the United States. At Zhongyan, we include full material tracking and test records from a third party with every shipment.

Can titanium rods be customized for proprietary device designs?

Yes, companies that do OEM work can make rods that are exactly the right size, length, surface finish, and mechanical qualities for a customer. This includes sizes that aren't normal, special heat treatments, and different ways of preparing the surface. Our building can handle both small batches of prototypes and large production runs, helping device makers from the idea stage all the way through to market launch.

Partner with Zhongyan for Premium Medical Titanium Rod Supplier Solutions

You can trust Zhongyan Titanium Industry to make your titanium rod medical units. They have over twenty years of experience in metalworking and state-of-the-art production facilities in Baoji, China's Titanium Valley. Our Grade 5 ELI rods, which come in lengths from 50mm to 300mm and widths from 1.5mm to 10mm, meet ASTM F136 and ISO 5832-3 standards. They are 100% ultrasonically inspected to make sure they arrive without any problems. Every rod has a smooth surface, is within ±0.03mm of its counterparts, and has a tensile strength of more than 850 MPa. All of the materials used can be tracked back to their source, and the company is ISO 9001:2015 certified. Our combined production system gives your medical device applications the quality, consistency, and technical support they need, whether you need standard catalog items or unique OEM solutions. Get in touch with our engineering team at sales@titaniumstudy.com to talk about your needs and find out why top orthopedic and dental device makers choose Zhongyan as their mission-critical titanium rod medical provider.

References

1. Long, M., & Rack, H. J. (1998). Titanium alloys in total joint replacement—a materials science perspective. Biomaterials, 19(18), 1621-1639.

2. Niinomi, M. (2008). Mechanical biocompatibilities of titanium alloys for biomedical applications. Journal of the Mechanical Behavior of Biomedical Materials, 1(1), 30-42.

3. Geetha, M., Singh, A. K., Asokamani, R., & Gogia, A. K. (2009). Ti-based biomaterials, the ultimate choice for orthopedic implants—A review. Progress in Materials Science, 54(3), 397-425.

4. Kaur, M., & Singh, K. (2019). Review on titanium and titanium-based alloys as biomaterials for orthopedic applications. Materials Science and Engineering: C, 102, 844-862.

5. Elias, C. N., Lima, J. H. C., Valiev, R., & Meyers, M. A. (2008). Biomedical applications of titanium and its alloys. JOM, 60(3), 46-49.

6. Chen, Q., & Thouas, G. A. (2015). Metallic implant biomaterials. Materials Science and Engineering: R: Reports, 87, 1-57.
