How Do Custom Shaped Titanium Targets Improve Film Adhesion and Quality?

Custom Shaped Titanium Targets significantly improve film adhesion and quality by addressing critical challenges in physical vapor deposition processes. These precision-engineered sputtering components feature tailored geometries that optimize plasma distribution, reduce localized erosion, and ensure uniform thin film deposition across complex substrate surfaces. The custom shapes mitigate the notorious "racetrack effect" seen in standard flat targets, allowing more consistent atom flux and improved coating integrity. Enhanced thermal management through specialized geometries reduces stress buildup at the film-substrate interface, directly strengthening adhesion bonds essential for semiconductor, medical implant, and optical coating applications.

Understanding Custom Shaped Titanium Targets: Concepts and Benefits

What Makes Custom Geometries Different

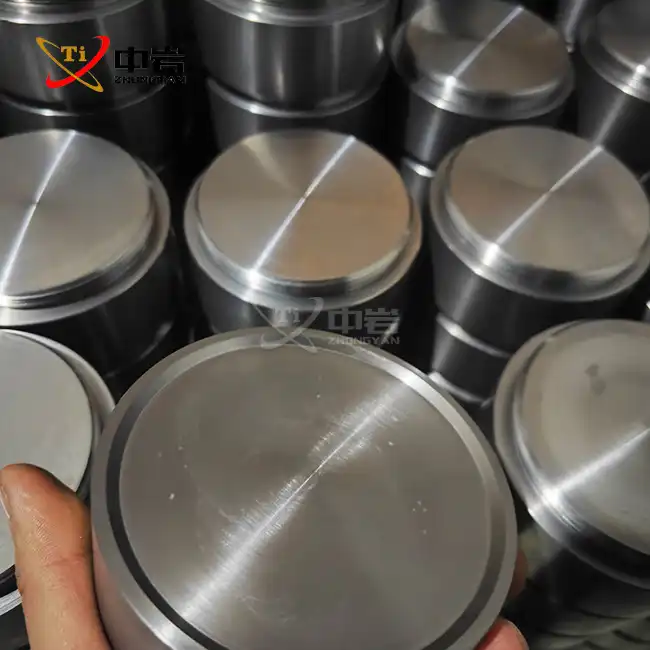

Custom Shaped Titanium Targets are very different from regular round targets because they have shapes that are made to improve finishing results. These unique parts come in a variety of shapes and sizes, such as stepped profiles, conical shapes, tubular shapes, ring-shaped shapes, and complex custom combinations that fit specific cathode assemblies. Advanced CNC cutting is used to make these targets. This allows for exact control over sizes, material grades, and surface finishes, which makes sure they work perfectly with specialized sputtering equipment. Because we are in China's Titanium Valley, Baoji Zhongyan Titanium Industry Co., Ltd. can make targets that meet ASTM B348 standards and have purity levels that reach 99.995%. As precise as ±0.05mm in terms of size, and with surface finishes of Ra ≤ 0.4μm, our cutting can get things done. These details are important because even small changes can affect the way plasma moves and the evenness of the film. Our custom geometries improve the efficiency of target usage and make plasma spread more regular. This directly leads to fewer film defects and more consistent thin film deposition.

Key Advantages for Production Operations

Buyers and production experts deal with a lot of problems every day, and these forms solve a few of them. Because custom profiles even out uneven erosion patterns, a lot more material is used. Standard planar targets often waste up to 70% of their material because erosion is concentrated in narrow racetracks. Custom designs spread wear over more areas, which makes them last 30 to 50 percent longer than standard forms. This improvement cuts down on the number of changeovers needed, keeps production running smoothly, and lowers the total cost of materials, even though the initial investment may be higher. Managing temperature is another important benefit. In high-power sputtering processes, cooling surfaces and heat dissipation features built into specialized shapes keep the target from warping and debonding. Because high-purity Grade 1 and Grade 2 titanium doesn't rust and lasts a long time, it can stay stable even in harsh reactive sparking settings. When you combine these features with our OEM packaging and customization options, you get solutions that are perfectly matched to the specs of your equipment and the needs of your production. To choose targets that fit your work goals and quality standards, you need to know about these perks.

Core Mechanisms: How Custom Shaped Titanium Targets Improve Film Quality

Plasma Dynamics and Energy Distribution

The magnetron sputtering dynamics are changed by the form of a titanium target, which changes the plasma density and energy spread on the substrate surface. Standard flat targets create magnetic fields that aren't uniform, which concentrates plasma in narrow bands. This makes atom release rates and film thickness vary. Custom Shaped Titanium Targets can change these electromagnetic interactions by changing the shape of the parts. For example, conical sections can change the flow of plasma, stepped profiles can even out erosion zones, and tube shapes can be rotated 360 degrees for continuous, even sputtering. When plasma dynamics are managed, film stress is reduced, and adhesion strength is increased. This is very important for high-reliability uses like solar cell contacts and semiconductor interconnects. When atoms hit the substrate with the same amount of energy and at the same angles, they make layers that are denser and more evenly bound. We make sure that each target has the same sputtering performance so that coatings meet strict industry standards for thickness difference (often less than 2% across big substrate areas), crystallographic orientation, and residue stress levels.

Microstructural Control and Film Integrity

The coating quality is greatly affected by the target material's grain size and crystallographic pattern. We make targets with fine, evenly spaced grains that are usually smaller than 30 µm on average. We do this by carefully making and heating the targets while following strict quality control rules. This even microstructure makes sure that the sputter rates are the same all over the target surface. This stops localized differences that could lead to film flaws like lumps or pinholes.Customized target forms make sure that coatings are uniform and vary little. This meets strict industry standards in medical device coatings where biocompatibility depends on surface consistency and in optical applications where interference effects need precise thickness control at the nanometer level. When semiconductor factories switched from standard targets to custom profiled targets, the number of particles dropped by 40% and step coverage in high-aspect-ratio vias got 25% better. These measurable gains in film integrity and durability show that new target designs that are matched to the right process conditions can improve performance.

Comparison: Custom Shaped Titanium Targets vs Standard and Alternative Metal Targets

Performance Advantages Over Standard Formats

Custom Shaped Titanium Targets are better in quality, consistency, and longevity than normal round titanium targets because they improve erosion patterns and plasma exposure features. Standard targets have the standard racetrack erosion pattern, which is a narrow band where 60–70% of the material is removed while large areas around the edges are rarely used. This useless pattern means that targets have to be replaced often, and as erosion gets worse, the films become less regular. Custom shapes solve this issue by distributing materials in a smart way. In areas with a lot of erosion, dog-bone shapes make the material thicker, stepped designs make many useful sputtering surfaces, and contoured interfaces match magnetic field patterns to get even wear. As a result? Target utilization rates of more than 80%, compared to 30–40% for standard forms. This means longer service intervals and lower material costs per amount of film deposited. Production managers like this because it extends the time between repair breaks, which makes the tools work better overall.

Material Selection Considerations

Titanium is better than other metals like copper or aluminum when it comes to adhesion strength and rust resistance, which are important for some thin film uses. Titanium's natural oxide layer helps it chemically bond strongly with many substrate materials. Its high melting point and low vapor pressure also make it solid when high power levels are used. Copper targets may be better at conducting electricity, but titanium targets are better at biocompatibility for medical treatments and oxidation protection for reactive sputtering. When making B2B purchasing choices, people need to think about more than just the cost and properties of the materials. They also need to think about things in the supply chain, like lead times and the ability to offer big discounts. At Zhongyan, we have a combined production system that includes research, manufacturing, and CNC machining services. This system lets us deliver custom targets within 4 to 6 weeks for first orders and in 2 to 3 weeks for return orders. We keep different types of titanium in stock and can increase production to meet high-volume needs. When custom titanium targets are used, a full cost-benefit analysis usually shows a positive ROI. This is because fewer flaws, less downtime, and lower overall material consumption more than make up for any increase in unit price.

Procurement Guide: Selecting and Ordering Custom Shaped Titanium Targets

Technical Specification Requirements

To choose the right Custom Shaped Titanium Target, you need to be very specific about technical details like the material grade, thickness, physical limits, and surface finish. First, write down the magnetic field setup, cathode dimensions, and cooling interface specs for your sputtering system. With this information, makers can create shapes that make coupling more efficient and meet goal usage. Choosing the right material grade depends on how pure you need it to be. Grade 1 titanium is commercially pure and very easy to shape, so it's good for many industrial coating uses. On the other hand, ultra-high purity grades of about 99.995% are needed for semiconductors and advanced electronics, where small contaminants can cause devices to fail. Choose the thickness based on the life you want and the amount of erosion you want. Usually, thicknesses range from 3mm for study purposes to 100mm for mass production. Tolerances in dimensions are important. Tighter tolerances (±0.05mm) make sure that things fit properly and that heat contacts properly, but they may make production more difficult and cost more. Needs for surface finish balances different factors. Smoother surfaces (Ra < 0.4μm) need more finishing steps but take less time to prepare and make particles. Specifications for flatness (≤0.05mm/100mm) keep stress from building up and make sure that magnetic fields interact evenly. It is necessary to meet density goals of at least 99.5% of theoretical to get rid of internal gaps that lead to virtual leaks and micro-arcing. We work closely with customers to make sure that these factors are balanced against time and budget limits, making sure that the standards are both necessary and sufficient.

Supplier Evaluation and Logistics

When you evaluate suppliers, you have to look at their certifications, production skills, and ability to meet wait times that are important for meeting factory plans. Check that any possible sellers follow the ISO9001:2015 quality management system and can give you material certifications that can be linked to international standards like ASTM B348 and AMS specs. Ask for proof of the accuracy of CNC cutting by looking at capability studies that show tolerance success.OEMs that need to place large or regular orders need to know about production capabilities. We keep up-to-date production tools like 5-axis CNC machines for working with complicated shapes, precision grinding for smoothing out surfaces, and a full set of measurement tools for making sure the sizes are correct. Because we are in Baoji, we can easily get titanium raw materials and use the specialized processing facilities that are grouped together in this industry area. Logistics issues include more than just when the goods will arrive. They also include how to package them in a way that protects the surfaces, what paperwork is needed to get them through customs, and how to provide support after the sale for fitting help and performance issues. We can customize OEM packaging so that it works perfectly with the way you receive and handle items. Sustainable practices are emphasized by advice on recycling and upkeep. We can reuse and recycle old targets to get back valuable titanium material and help you reach your environmental goals. These services help make the product last longer and lower its total cost of ownership over its entire lifecycle.

Real-World Applications and Case Studies

Semiconductor and Microelectronics

Custom Shaped Titanium Targets work especially well in making semiconductors, where better bonding and even thin films directly affect the performance and output of the device. Titanium and titanium nitride layers stop copper from moving into silicon and help it stick together so that metallization can happen later. Custom targets in the shape of rings and hollow cathodes allow collimated sputtering in deep contact holes and vias, which is something that flat targets can't do. Production data from top fabs shows that custom-profiled targets improved the consistency of thickness on 300 mm wafers from ±4% to ±1.5%. This decreased difference in electrical parameters and raised die yield by 3-5%. Being able to keep deposition rates constant over the target life avoids process drift and lowers the number of times that recipes need to be changed, which speeds up production.

Medical and Optical Coating Applications

When covering medical implants, special cylinder-shaped or concave targets cover complicated 3D shapes like dental screws and fake joints evenly, without leaving any areas uncoated. The safe titanium surface helps osseointegration, which is when live bone directly connects with the implant surface structurally and functionally. Custom shapes make sure that plasma covers the implant completely from all sides, which is important for the long-term success of the implant. Customized designs are used in the production of solar panels and industrial optical films to get precise surface qualities with as little waste as possible. Rotatable tube targets make better use of materials and allow for longer production runs without breaking the vacuum. This lowers the risk of contamination and makes it easier to make the same covering over and over again. End-user reviews and comments from original equipment manufacturers (OEMs) regularly back up these benefits, showing how custom solutions lead to measurable gains in manufacturing processes and end product quality across a wide range of application areas.

Conclusion

Custom Shaped Titanium Targets are a smart investment that will pay off in the long run by making film bonding, coating consistency, and production efficiency better. The geometric adaptation improves plasma dynamics, makes better use of materials, and handles heat better than standard formats. You can get regular, high-quality thin films that meet strict industry standards if you set goals with the right purity levels, grain structure, and dimensional accuracy for your tools and uses. When you look at providers based on their technical skills, quality certifications, and full support services, you can be sure that the makers you work with can give you reliable, performance-tested solutions that lower your total cost of ownership while also improving the quality of your products.

FAQ

What target shape works best for my specific coating application?

The target shape you choose will rely on the design of your magnetrons, the shape of your substrate, and your needs for consistency. For covering flat glass or wafers, rectangular targets that are flat work best, while cylinder-shaped targets that can be rotated work best for continuous processing. Designs with a ring or a hollow cathode give better covering to features that are hidden. Talking to our applications experts about your equipment needs and coating goals is a good idea. They can model plasma spread and suggest the best geometries. Most customers gain from graded or profiled widths that make up for erosion patterns and greatly increase the useful life of the Custom Shaped Titanium Target.

How long does custom target manufacturing typically take?

Initial custom orders usually take between 4 and 6 weeks to deliver after the specifications are approved. This includes checking the design, making sure the right tools are ready, setting the CNC, cutting the parts, and inspecting the quality. Since tools and programs are already set up, repeat orders with the same specs can be sped up to two to three weeks. Lead time is based on the difficulty of the geometry, the supply of the material grade, and the size of the order. We keep popular grades of titanium in stock and can give priority to urgent orders when our production plans allow it. Making sure we understand your schedule needs during the quote process is important for aligning our manufacturing capacity.

Can spent titanium targets be recycled or refurbished?

Titanium targets can be recovered cheaply when erosion removes a lot of material that can be used again. We offer reclamation services that get titanium ready for reuse, which is good for the earth and saves money. You can't fix targets that have been worn down so thin that they are no longer useful, but they still have a lot of value as scrap. Recycling returns rely on how much and how pure the material is that is left. We work with qualified recyclers to make sure things are handled properly, and we can also handle transportation. This circular method lowers the cost of raw materials and supports environmental efforts, which are becoming more and more important to corporate buying policies.

Enhance Your Coating Quality with Zhongyan's Custom Shaped Titanium Target Solutions

Zhongyan is ready to change the way you do thin film deposition by making Custom Shaped Titanium Targets that are precisely built and made to your exact specs. As a top provider of Custom Shaped Titanium Targets in China's Titanium Valley, we use our many years of experience working with titanium along with cutting-edge CNC equipment to make targets that meet ASTM, AMS, and ISO standards. Our high-purity Grade 1 and Grade 2 titanium targets are up to 99.995% pure and have size errors of no more than 0.05 mm, so they will work perfectly in your specialized sputtering equipment. Send an email to sales@titaniumstudy.com to talk to our research team about your particular needs for goal geometry, material specs, and production volumes. From the initial design advice to OEM packaging customization and technical help after the sale, we offer full support. Before committing to production numbers, make sure you get full technical specs, material certifications, or sample goals to make sure they will work in your application. Find out how our commitment to quality manufacturing and customer satisfaction can improve the quality of your coatings while lowering costs and increasing operating efficiency.

References

1. Thornton, J.A. "Magnetron Sputtering: Basic Physics and Application to Cylindrical Magnetrons." Journal of Vacuum Science & Technology, Vol. 15, No. 2, 1978, pp. 171-177.

2. Rossnagel, S.M. "Thin Film Deposition with Physical Vapor Deposition and Related Technologies." Journal of Vacuum Science & Technology A: Vacuum, Surfaces, and Films, Vol. 21, No. 5, 2003, pp. S74-S87.

3. Kelly, P.J. and Arnell, R.D. "Magnetron Sputtering: A Review of Recent Developments and Applications." Vacuum, Vol. 56, No. 3, 2000, pp. 159-172.

4. Mattox, D.M. "Handbook of Physical Vapor Deposition (PVD) Processing: Film Formation, Adhesion, Surface Preparation and Contamination Control." Second Edition, Elsevier, 2010.

5. Ohring, M. "Materials Science of Thin Films: Deposition and Structure." Second Edition, Academic Press, 2001, Chapter 5: Physical Vapor Deposition.

6. Musil, J. "Physical and Mechanical Properties of Magnetron Sputtered Titanium-Based Films: A Review." Surface and Coatings Technology, Vol. 142-144, 2001, pp. 557-566.
