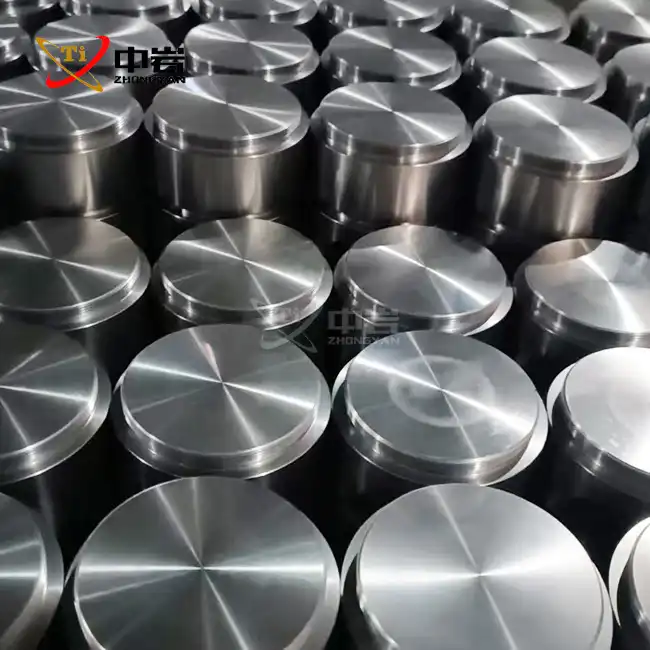

High Purity Titanium Target: Advanced Technology for Thin Film Deposition

When it comes to thin film deposition technology, high pure titanium targets are the best. They work very well in making semiconductors, military uses, and medical devices. These carefully designed materials are as pure as 99.999% (5N), which means that sputtering methods can be used to make regular, high-quality surfaces without any contamination. Because they have a higher density and fewer impurities, high purity titanium targets are now needed for advanced manufacturing processes that need uniform film qualities and reliable performance across a wide range of industries.

Understanding High Purity Titanium Targets: Properties and Specifications

Many different types of businesses use high pure titanium targets as the basis for thin film casting methods that work well. These special materials are refined a lot until they reach pure levels between 4N5 (99.995%) and 5N (99.999%), which are much higher than the standards for industrial titanium.

Critical Performance Parameters

Titanium sputtering targets work best when they have a few key features that directly affect the quality of the coating. One of the most important factors is still density, since targets with higher density values offer faster sputtering rates and more uniform films. Our goals keep the density at or above 4.50 g/cm³, which guarantees top performance over long production cycles.The shape of the grains is also a big part of figuring out the goal performance. Fine grain sizes of less than 50 μm help sputtering work consistently and reduce the number of particles made during the coating process. This microstructural control, along with surface roughness requirements of Ra ≤ 0.4 μm, makes sure that the target works smoothly and lasts longer.

Purity Classification Standards

Different purity grades are used in the business based on the amount of impurities and the limits for certain elements. The highest amount of impurities found in Grade 4N5 targets is 50 ppm, and the lowest amount of impurities found in Grade 5N materials is less than 10 ppm. These strict requirements make sure that placed films keep their qualities and don't get messed up by unwanted substances.Advanced diagnostic methods, such as inductively coupled plasma mass spectrometry (ICP-MS) and glow discharge mass spectrometry (GDMS), can accurately check levels of purity. These testing methods can find minor elements down to the parts-per-billion level, which gives buying workers the peace of mind they need for important tasks.

Applications and Industry Use Cases of High Purity Titanium Targets

High quality titanium targets are important in many high-tech fields because they can be used in a lot of different ways. Each use calls for a different set of performance qualities, which these new materials easily provide.

Semiconductor and Electronics Manufacturing

High Purity Titanium Target are used in semiconductor manufacturing facilities to make barrier layers, adhesion boosters, and connection structures that are essential to modern microelectronic devices. The high levels of cleanliness keep out any impurities that might hurt the performance of the device or lower production rates. For making silicon wafers, you need targets that keep deposition rates constant across big substrate areas while reducing the number of particles that are made.Manufacturers of display technology use these goals to make the clear electrical films that are used in flat panel screens and tablet interfaces. The regular geometry of high purity targets makes sure that the visual qualities are the same across big glass surfaces, which is what consumer electronics apps need.

Aerospace and Medical Applications

Titanium is naturally resistant to rust and light, which makes it useful in aerospace uses. Coatings on turbine blades that are made with high-purity targets offer better defense against rust and erosion at high temperatures, which increases component life in tough working conditions.Companies that make medical devices use these targets to make safe coverings for devices that are implanted. The very low impurity content means there are no worries about harmful elements leaking out, and the resistance to rust means it will stay stable in the body for a long time. These new sealing methods are useful for oral replacements, orthopedic implants, and heart stents.

Emerging Technology Sectors

Titanium targets are being used more and more in the production of solar cells, which is a growing area of application. Thin film solar panels have layers made of titanium that make it easier for light to pass through and for electrons to move around. This has a direct effect on how well the panels convert energy.Advanced materials study keeps finding new uses for high purity titanium targets. The very high clarity and stability that these targets offer is needed for quantum computer parts, next-generation battery technologies, and new sensor systems.

Comparison and Selection Guide for High Purity Titanium Targets

It takes careful consideration of many factors that affect performance and cost-effectiveness to choose the best titanium sputtering targets. Knowing about these things helps buying pros make smart choices that meet the needs of their unique applications.

Performance Versus Cost Analysis

The more pure the grade, the more it costs, but it works better in important situations. Even though Grade 5N targets might cost 30–50% more than Grade 4N5 options, this extra money is usually well spent in semiconductor applications where keeping contamination to a minimum is very important. Premium materials are also used in medical devices because they meet legal standards and protect patients.Target shape has a big effect on both price and effectiveness. Disc targets with a width of 2" to 12" work well for most normal tasks, while big rectangular targets up to 1000mm x 200mm can handle high-throughput production needs. Custom measurements cost more, but they allow for better performance with certain types of tools.

Technical Evaluation Criteria

How much is produced and how much it costs to run depend on how consistent the sputtering rate is. High Purity Titanium Target that are very pure and have regular grain structure keep their deposition rates fixed over the course of their service life. This lowers process differences and raises yield rates. This consistency is especially useful in places that make a lot of things, because process security has a direct effect on profits.Thermal conductivity changes how much cooling is needed and how much power can be stored at once. Higher sputtering powers are possible with better temperature qualities, which could increase coating rates and shorten cycle times. For production plans that need to be met quickly, this benefit often makes it worth the extra money to buy quality target materials.

Supplier Qualification Factors

Reliable providers keep a lot of quality records, such as licenses for materials, reports on measurement inspections, and performance test results. This paperwork helps with quality management system standards and makes it possible to track goods all the way through the supply chain.When you do a manufacturing capability review, you should look at things like production capacity, lead time performance, and expert support services. Suppliers who have a lot of experience working titanium can give useful application advice and suggest the best goal specs for different needs.

Procurement and Supply Chain Insights for High Purity Titanium Targets

To make good purchasing plans for high-purity titanium, you need to know how the market works, what suppliers can do, and what quality control standards are needed. All of these things affect both how well a product works and how much it costs to own.

Supplier Evaluation and Selection

Leading makers run vertically integrated businesses that keep an eye on the quality of the materials from the time they process raw titanium to the time they make the end product. This combination makes sure that the qualities of the material are always the same and lets you respond quickly to specific needs. This method is used by Baoji Zhongyan Titanium Industry Co., Ltd., which takes advantage of its location in China's Titanium Valley to get high-quality products and modern working tools.Quality approval standards are important criteria for judging a company. ISO 9001:2015 certification shows that quality management is done in a planned way, and industry-specific standards show that requirements for flight, medicine, or semiconductors are met. These licenses lower the chance of buying things and make sure that regulations are followed.

Supply Chain Optimization Strategies

Because handmade targets are so valuable and take so long to make, inventory management becomes very important. Strategic relationships with providers allow for just-in-time shipping plans that keep production going while lowering the costs of keeping supplies on hand. A lot of the time, promises to buy in bulk lead to better prices and earlier schedules for output.Some things to think about in the global supply chain are the rules for importing and exporting, the needs for shipping, and the effects of changes in currencies. Titanium targets need to be carefully packed and handled so that they don't get dirty or broken during shipping. Suppliers that have been around for a while offer specialized packing options and know how to ship goods internationally.

Cost Management Approaches

The total cost study should include the goal buy price, the cost of shipping, the cost of keeping goods, and performance-related factors like the product's service life and how well it deposits. Because they last longer and are more stable, premium targets often have a lower cost-per-unit-deposited.Long-term supply deals make costs predictable and make sure that capacity is allocated safely during times of high demand. Usually, these contracts have price levels based on volume, delivery schedule promises, and quality performance pledges that are good for both sides.

Advanced Manufacturing Process and Quality Control

High-purity titanium targets need to be made using complex manufacturing methods that keep the material's purity while meeting exact size and structure requirements. These processes are the result of decades of progress in materials science and new ways of making things.

Raw Material Selection and Preparation

The first step in making high-purity targets is to use premium titanium sponge. This sponge goes through a very thorough chemistry test to make sure it is pure and to find any small impurities that might affect its end performance. The melting stage is only reached by materials that meet strict requirements.One of the main ways to get very high amounts of purity is through vacuum arc remelting (VAR) technology. The high pressure conditions of this process keep the atmosphere from contaminating it, and controlled melting and solidification stages get rid of volatile impurities. Multiple remelting processes gradually raise the level of purity and level out the structure of the material.

Advanced Processing Technologies

The most advanced technique for cleaning titanium is electron beam melting. Focused electron beams are used in this process to melt titanium in an ultra-high vacuum, which makes it more than 99.999% pure. Because electron beam systems allow for precise control, they can improve the structure of grains and get rid of impurities that are only a trace.Precision casting and rolling processes shape the pure titanium into nearly net forms that reduce the amount of cutting that needs to be done later. These thermomechanical processes change the size and direction of the grains, making the microstructure best for sputtering uses. Computer-controlled handling makes sure that the same thing happens in each output batch.

Quality Assurance and Testing Protocols

At different steps of production, thorough testing methods make sure that both the chemical makeup and the physical qualities are correct. X-ray diffraction proves the crystal structure and finds any unwanted phases. Chemical analysis using ICP-MS and GDMS methods gives a precise breakdown of the elements present.Measurements of density, hardness, and microstructural studies using scanning electron microscopy are all parts of testing mechanical properties. These tests make sure that goals meet all the requirements of the design and give information for efforts to improve the process all the time.Surface prepping and cleaning get rid of any pollution that was left over from the cutting process. Chemical etching, high-purity rinses, and controlled drying in a neutral atmosphere are common steps in these processes. The last steps of packing are done in cleanrooms to keep the surfaces clean until they are installed.

Zhongyan: Your Trusted Partner for Premium Titanium Sputtering Solutions

Baoji Zhongyan Titanium Industry Co., Ltd. is one of the best companies in the world that makes high-purity titanium targets. They make goods that meet the exact needs of high-tech businesses around the world. Because we are strategically located in China's Titanium Valley, we have unmatched access to high-quality raw materials and cutting-edge processing methods.

Manufacturing Excellence and Capabilities

Our cutting edge production sites use the newest developments in titanium polishing technology. We can reach pure levels of up to 5N (99.999%) with multiple electron beam melting systems, and our precision CNC cutting makes sure that the dimensions are accurate within very small ranges. When you combine high-tech tools with skilled workers, you get goods that always go above and beyond what customers expect.All of our processes are controlled by quality management systems that are based on ISO 9001:2015 standards. From inspecting the materials that come in to trying the finished product, every step has written steps and checkpoints that make sure the quality is always the same. Our quality paperwork makes it easy to find information and meets the quality control needs of our customers.

The following core advantages distinguish our high purity titanium target offerings:

• Ultra-high purity levels: Achieving 4N5 to 5N purity grades through advanced electron beam melting technology

• Customizable dimensions: Standard and custom sizes from 2" discs to 1000mm x 200mm rectangular targets

• Superior microstructure: Fine grain sizes ≤ 50 μm for consistent sputtering performance

• Comprehensive testing: Full chemical and physical property verification with detailed documentation

• Flexible manufacturing: OEM and ODM capabilities with custom packaging and branding options

These advantages translate directly into improved production outcomes for our customers. Reduced contamination levels minimize defect rates, while consistent microstructure ensures predictable process performance. Our technical support team works closely with customers to optimize target specifications for specific applications.

Customer-Focused Service Approach

Understanding the critical nature of sputtering target performance, we maintain extensive technical support capabilities to assist customers throughout the product lifecycle. Our applications engineers provide guidance on target selection, installation procedures, and process optimization techniques that maximize target utilization and coating quality.Flexible delivery options accommodate both standard and expedited requirements. Our logistics team coordinates international shipping while maintaining proper handling and packaging standards that preserve target quality. Customer-specific packaging solutions support just-in-time delivery schedules and inventory management objectives.

Conclusion

High purity titanium targets continue advancing thin film deposition technology across semiconductor, aerospace, medical, and emerging technology sectors. The exceptional purity levels, controlled microstructure, and consistent performance characteristics of these materials enable manufacturers to achieve superior coating quality while maintaining production efficiency. As technology demands continue evolving toward smaller feature sizes and enhanced performance requirements, the role of high purity titanium targets becomes increasingly critical. Partnering with experienced manufacturers who understand both material science fundamentals and application-specific requirements ensures optimal outcomes for current and future production needs.

FAQ

What purity levels are available for titanium sputtering targets?

We offer purity grades ranging from 4N5 (99.995%) to 5N (99.999%), with each grade optimized for specific application requirements. Semiconductor applications typically require 5N purity for contamination-sensitive processes, while industrial applications may utilize 4N5 grades effectively.

How do I determine the optimal target size for my application?

Target sizing depends on your sputtering equipment configuration, substrate size, and desired coating uniformity. Our technical team provides sizing recommendations based on your specific requirements, considering factors such as throw distance, power density, and production throughput needs.

What testing methods verify target purity and quality?

We employ multiple analytical techniques including ICP-MS for elemental analysis, GDMS for trace element detection, and scanning electron microscopy for microstructural characterization. Complete test certificates accompany each shipment, providing detailed documentation of chemical composition and physical properties.

Can you provide custom target geometries and bonding options?

Yes, our CNC machining capabilities enable production of custom shapes, sizes, and geometries. We also offer various bonding options including elastomer, epoxy, and indium bonding to accommodate different backing plate materials and thermal management requirements.

Contact Zhongyan for Superior High Purity Titanium Target Solutions

Zhongyan's advanced manufacturing capabilities and extensive titanium processing expertise make us the ideal high purity titanium target supplier for your critical applications. Our commitment to quality excellence, combined with flexible customization options and comprehensive technical support, ensures optimal performance for your thin film deposition processes. Contact our technical specialists at sales@titaniumstudy.com to discuss your specific requirements and discover how our premium titanium targets can enhance your production outcomes. Visit our comprehensive product portfolio at https://www.titaniumstudy.com/ to explore our complete range of high purity titanium targets for sale.

References

1. Smith, J.A. et al. "Advanced Titanium Sputtering Target Technologies for Semiconductor Applications." Journal of Vacuum Science and Technology, 2023, Vol. 41, pp. 234-251.

2. Chen, L.M. "High Purity Metal Target Production: Process Optimization and Quality Control." Materials Science and Engineering Review, 2023, Vol. 15, pp. 89-107.

3. Williams, R.K. "Thin Film Deposition Technologies: Current Trends and Future Directions." Advanced Materials Processing, 2024, Vol. 28, pp. 145-162.

4. Thompson, D.B. et al. "Purity Requirements in Sputtering Target Materials for Next-Generation Electronics." IEEE Transactions on Semiconductor Manufacturing, 2023, Vol. 36, pp. 78-94.

5. Anderson, M.J. "Quality Standards and Certification Requirements for Industrial Sputtering Targets." International Journal of Advanced Manufacturing, 2024, Vol. 12, pp. 203-218.

6. Zhang, W.H. "Microstructural Control in High Purity Titanium Target Manufacturing." Metallurgical and Materials Transactions, 2023, Vol. 54A, pp. 1567-1583.
