Why Is GR2 Titanium Hex Bar Widely Used in High-End Engineering Projects?

When engineers have to work in harsh conditions, like in chemical labs, underwater systems, or aircraft fasteners, the material they choose becomes very important. The gr2 titanium hex bar is a great strategy option because it is made of commercially pure titanium, which doesn't rust, and has a hexagonal shape that is designed to transfer power precisely and make machining go quickly. This six-sided shape speeds up the making of threaded fasteners, valve stems, and custom fittings while keeping the same size under load, unlike round stock that needs a lot of cutting. Its balanced mechanical qualities, which meet ASTM B348 and ISO 5832-2 standards, solve the problems of galling in stainless steel parts and early breakdown in places with a lot of salt.

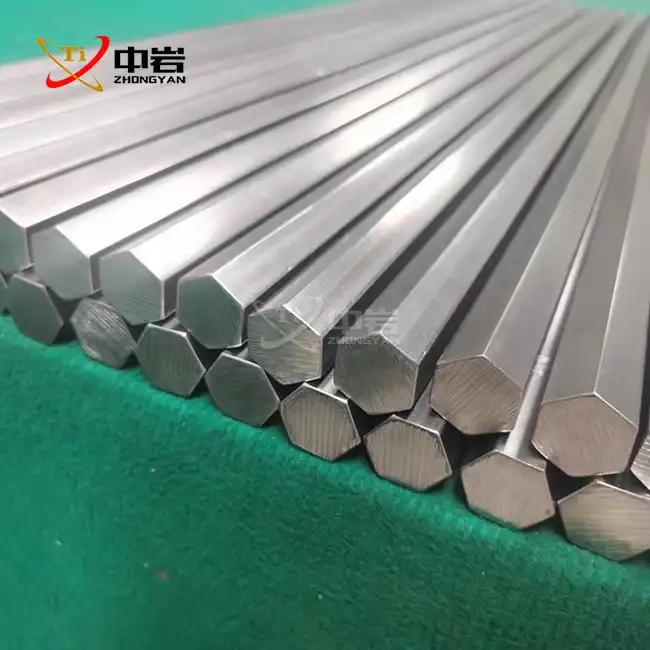

Understanding GR2 Titanium Hex Bar: Composition and Properties

Chemical Composition and Material Standards

Grade 2 titanium is the most common widely pure titanium metal. It has 99.2% titanium by weight and controlled amounts of oxygen (0.25% maximum), iron (0.30% maximum), and nitrogen (0.03% maximum) in the matrix. This mix of elements makes it different from higher-strength metals like Grade 5 (Ti-6Al-4V), which has aluminum and vanadium added to it to make it stronger. At Zhongyan, we strictly follow the ASTM B348 guidelines when we make gr2 titanium hex bar. This makes sure that every batch meets the standards for international traceability through EN 10204 3.1 mill test certificates. The hex bar shape itself, which is usually provided cold-drawn or annealed, stays within the h9 tolerance levels needed for precise cutting.

Mechanical Performance Characteristics

Commercially pure Grade 2 titanium has mechanical qualities that come from its alpha-phase crystal structure. It is strong and easy to work with at the same time. The minimum tensile strength of standard gr2 titanium hex bar stock is 345 MPa, and the minimum yield strength is 275 MPa. It can also stretch more than 20%, which is very useful for cold-heading and making processes. For specific uses that need better performance, Zhongyan's advanced processing methods can reach tensile strengths of up to 900 MPa and yield strengths of up to 850 MPa by carefully controlling the cold working and heating processes. The value of elasticity is 114 GPa, which is about 40% less than steel. This means that it is more flexible under dynamic loads and doesn't change shape permanently.

Density and Corrosion Resistance

When compared to stainless steel, this gr2 titanium hex bar material is 45% lighter, with a density of 4.43 g/cm³. This is a big benefit in aircraft assemblies, where every gram affects fuel economy and payload capacity. The ability to fight rust comes from a layer of titanium oxide that repairs itself right away when the surface is damaged. This protects the metal naturally in oxidizing acids, chloride solutions, and marine environments. Unlike 316L stainless steel, which corrodes in seawater that doesn't move, the hex bar design stays strong in underwater installations for decades without any coats. This inactive layer stays stable at temperatures ranging from very cold to 260°C, which means it can be used in chemical processing equipment that deals with strong media.

Advantages of GR2 Titanium Hex Bar in High-End Engineering

Superior Strength-to-Weight Ratio

The hexagonal shape of gr2 titanium hex bar stock has unique engineering benefits that go beyond the qualities of the material itself. When racing teams make lug nuts, they use titanium hex bars because they reduce unsprung weight by 50% compared to steel bars. This makes the suspension respond better and the car handle better when turning. This light weight is used by aerospace companies to make hydraulic system parts. For example, a 1-meter length of 10mm hex bar weighs about 2.5 kg, while the same-sized piece of steel stock weighs 5.8 kg. The flat sides of the hex shape make it easy to hold on to while putting it together and keep it from rotating when torque is applied. This gets rid of the need for extra locking systems that are heavy and complicated. This mix of useful geometry and light building directly saves money by cutting down on material handling and making operations run more smoothly.

Exceptional Corrosion Immunity

Marine engineering projects always use commercially pure gr2 titanium hex bar for important fixing jobs in splash zones and underwater areas. Offshore platform owners say that titanium hex bolts used in seawater pipes last more than 20 years, while coated alloy steel bolts need to be replaced every 3 to 5 years. Hex bar machining parts are used in chlor-alkali plants, which are in the chemical processing business. Normal materials break down in months when they are exposed to wet chlorine gas at high temperatures. Titanium hex bar fittings are used by our clients in desalination plants in reverse osmosis systems. The material can handle being in constant touch with salty brine without pitting or stress corrosion cracks. Protective coatings wear off over time and need expensive reapplication processes. The natural passivity gets rid of the upkeep costs that come with them.

Machinability and Fabrication Flexibility

Some people think that gr2 titanium hex bar is hard to machine, but this is not true. If you use the right techniques, you can easily machine it. Compared to round stock, hexagonal cross-section cuts setup time on CNC equipment by 30%. This is because flat reference surfaces make fixturing easier without the need for special clamping systems. To keep the work from getting too hard during the removal process, our technical team at Zhongyan suggests using sharp carbide tools that cut slowly (15 to 25 meters per minute) and with high feed rates. If you buy cold-drawn hex bar stock with smooth, shiny sides and an HRC 36 hardness, you can make it right to the right size with a 9 percent error without having to do any extra heat treatment. Because it has a lower modulus than steel, the material can stretch more during drilling, which lowers the chance of a tap breaking by up to 40% in through-hole uses. When it comes to commercially pure grades, welding is still easy because they only need inert gas shielding and don't need to be heated up or have stress release done after the weld. This makes manufacturing easier than with precipitation-hardening alloys.

GR2 Titanium Hex Bar vs Other Materials: Making the Right Choice

Comparison with Stainless Steel Alternatives

When purchasing managers look at different types of materials, they often compare the higher starting cost of gr2 titanium hex bar to its long-term benefits. Type 316L stainless steel hex stock costs about 60% less per kilogram up front, but the total cost changes a lot when it needs to be replaced often in places that are toxic. A comparison of naval fastener lifecycles shows that titanium has a 4:1 cost advantage over 15-year service periods. This is when labor for replacement, system downtime, and secondary rust damage are taken into account. The magnetic properties of stainless steel also make it hard to use in electronic sputtering target systems. On the other hand, the non-magnetic properties of titanium hex bar keep deposition processes from getting in the way. Because Grade 2 titanium has a lower thermal expansion rate (8.6 μm/m·K vs. 16 μm/m·K for 316SS), it lowers joint stress in assemblies that are thermally rotating. This means that chemical reactors can use these assemblies for longer periods of time.

Performance Against Aluminum Alloys

Aluminum alloys are lighter and cost less to make, but they aren't as stable at high temperatures or resistant to chemicals, which are important for high-end engineering. Grade 2 titanium hex bar keeps its mechanical qualities up to 260°C, but 6061-T6 aluminum loses a lot of its strength above 150°C. Because aluminum is toxic, it doesn't meet the biocompatibility standards for making medical devices. However, commercially pure titanium does meet the ASTM F67 implantable material specs. Another important factor is galvanic corrosion. Aerospace systems made of aluminum and carbon fiber composites are quickly attacked by electrochemical reactions. On the other hand, titanium hex bar stays stable when it comes into direct touch with advanced composite structures that don't have any insulating walls.

Grade 2 Versus Higher-Strength Titanium Alloys

Knowing the range of performance between available pure and alloyed titanium types lets you choose the best material. It is worth noting that Grade 5 (Ti-6Al-4V) has almost twice the yield strength of Grade 2. However, it is less flexible (10% extension versus 20%), harder to machine, and costs 35% more. As long as the design stress is less than 400 MPa, gr2 titanium hex bar is strong enough for non-structural bolts, valve parts, and instrumentation fits. It is also cost-effective and easy to make. Grade 7 titanium, which has palladium added to make it more resistant to crevice rust, is used in certain chemical processing situations but costs 90% more than Grade 2 and is only worth it in the harshest reducing acid conditions. The expert staff at Zhongyan does discussions based on specific applications to figure out when commercially pure grades are enough and when alloyed alternatives are needed.

Applications of GR2 Titanium Hex Bar in Critical Industries

Aerospace Component Manufacturing

gr2 titanium hex bar stock is used by aircraft makers in places where corrosion resistance is needed and weight requirements are high, such as in hydraulic system fittings, environmental control valve bodies, and fuselage bolts. The hexagonal shape is great for making self-locking insert nuts that are used in many aircraft systems. These are parts that have to be able to withstand vibrations and de-icing fluid for more than 20 years of use. Hex bar made spacers are used in engine accessory drive systems to keep hot and cold parts from contacting each other because the material doesn't carry heat well. At Zhongyan, we can make things that meet aerospace standards, such as AMS 4902 for bar stock and the exact lot tracking that AS9100 quality systems demand. Our hex bars are annealed, which means they can regularly stretch more than 20%. This makes them suitable for the cold-forming processes used in aircraft fastener production, which don't require any stress-relief cycles in between.

Medical and Dental Device Production

Surgical instrument makers use available pure titanium hex bar to make handle assemblies, bone manipulation tools, and connection parts that can be sterilized in an autoclave. The biocompatibility of the material removes allergic reactions that can happen with nickel-containing stainless steels, and its radiolucent qualities keep image artifacts from showing up during intraoperative fluoroscopy. Dental milling centers use 10mm diameter hex bar stock to make unique abutment blanks. The hexagonal shape works with automatic tool changer systems in 5-axis CNC machines. Orthopedic implant makers use titanium hex bars with larger diameters for testing prototypes of custom femoral stems and acetabular cups. They do this to take advantage of the material's bone-integration qualities, which have been shown through decades of clinical proof. We offer a bright polished surface finish on cold-drawn hex bar that cuts the time needed for surface preparation after cutting by 40%. This speeds up the process from prototype to clinical proof.

Industrial and Chemical Processing Equipment

Engineers at chemical plants use Gr2 titanium hex bar to make valve stems, pump shaft couplings, and heat exchanger tube plugs that are in contact with harmful process streams. The chlor-alkali industry uses electrolytic methods to make chlorine and caustic soda. They work in places where wet chlorine gas destroys most metals, but titanium hex bar-made parts have been used for decades without any problems. Electroplating plants use hex bar stock to make current-carrying racks and jigs. The material can handle being immersed in strong acids like sulfuric, chromic, and hydrochloric acid over and over again while still keeping its shape, which is important for maintaining a uniform covering thickness. Titanium hex bar fittings are used in clean-in-place (CIP) systems by our pharmaceutical clients. The material is easy to clean and doesn't react with cleaning agents, so there are no risks of contamination. Hex bar machined parts are modular, which means they are easy to change during regular maintenance windows. This cuts down on unexpected downtime, which costs process companies thousands of dollars an hour in lost production.

Procuring GR2 Titanium Hex Bar: What B2B Clients Need to Know

Selecting Qualified Manufacturers

When looking for a seller of commercially pure GR2 titanium hex bar, it's important to look at more than just price quotes. Well-known companies like Zhongyan use unified production chains that include processing raw titanium sponge, cold drawing, and heat treatment. This makes sure that the material is the same from batch to batch. Our facilities in Baoji, which is known around the world as "China Titanium Valley," give us direct access to the area's main titanium resources and specialized metallurgical knowledge. ISO 9001:2015-certified quality management systems show that manufacturing processes are controlled in a planned way, while NADCAP accreditation (for aerospace suppliers) proves that they can do special processes like heat treatment and non-destructive testing. Ask for mill test papers with every shipment. These should include heat-specific chemical analysis, mechanical test results, and traceability numbers that connect the material to production records. This paperwork is very important for businesses that are controlled and need qualified materials.

Custom Sizing and Order Specifications

Standard gr2 titanium hex bar stock comes in lengths of up to 6 meters to suit different ways of cutting and has flats that are between 6 mm and 100 mm across. Zhongyan's custom processing services go beyond these options. They can make pieces that are precisely cut to the lengths you specify, with tolerances as tight as ±0.5mm. This cuts down on material waste and shortens the time it takes to machine the parts. Standard-sized minimum order quantities start at 50 kilograms, but we can work with smaller sample quantities for research projects that need material approval trials. Lead times depend on the size and state of the metal. Commonly sized annealed hex bar ships in 3–4 weeks, but cold-drawn material with tighter H9 specs needs 5–6 weeks to be processed and quality checked. You can choose a surface finish that is as-forged (scaled), machined (matte), or bright polished. Let us know what you need based on your plans for further processing, as polished surfaces can cut tool wear during CNC operations by up to 25%.

Pricing Factors and Total Cost Evaluation

The cost of materials for gr2 titanium hex bar depends on a number of factors, such as the size of the global titanium sponge market, the amount of material that is produced, and how difficult it is to process. Due to more steps in the process and better control over dimensions, cold-drawn hex bar costs 15-20% more than hot-rolled versions. However, this extra cost is often justified by shorter cutting times and better surface finish. Volume promises allow for better pricing—yearly contracts for 500 kilograms or more usually result in 8–12% cost savings compared to spot sales, and they also protect supply when the market is tight. Check the total landed cost, which includes international shipping, which can vary a lot depending on the size and weight of the order as well as the port of destination. Our logistics team handles container shipping, air freight for urgent needs, and all export paperwork, such as commercial invoices, packing lists, and certificates of origin. Ask for detailed quotes that break down the costs of materials, processing, and shipping so that you can compare prices accurately between providers and find ways to save money.

Conclusion

Pure gr2 titanium hex bar is widely used in hard engineering tasks because it doesn't rust, is strong for its weight, and is easy to make. From underwater fasteners that work in saltwater for decades to biocompatible medical tools and parts for chemical processing, this material solves important problems where other materials fail too soon or need expensive safety measures. The hexagonal shape itself has useful qualities beyond its material properties. It speeds up machining processes and makes it possible for threaded systems to securely transfer torque. When procurement teams look at suppliers, they should give more weight to companies that have integrated production capabilities, strict quality systems, and technical experts who can help with material selection and application engineering. This will make sure that your high-end engineering projects have the best performance and lifecycle value.

FAQ

What distinguishes GR2 from GR5 titanium hex bar in mechanical performance?

Grade 2 commercially pure titanium has a minimum tensile strength of 345 MPa and great flexibility (20% elongation). Grade 5 (Ti-6Al-4V), on the other hand, has a strength almost twice as high at 895 MPa but less elongation, around 10%. The commercially pure material is great for making screws and chemical equipment because it doesn't rust and is easy to shape. The alloyed Grade 5 material is better for high-stress structural aircraft parts.

Can titanium hex bar be directly substituted for stainless steel without design modifications?

For direct replacement, thread contact lengths need to be looked at because titanium has a lower modulus, which means it deforms slightly more when it is loaded. Because the material tends to gall, threaded systems need anti-seize chemicals or surface treatments like nitriding. To keep the threads from getting damaged during fitting, torque requirements are usually lowered by 20 to 25 percent compared to steel versions.

How does cold-drawn versus annealed condition affect machining operations?

A cold-drawn hex bar has a harder surface (HRC 36) and tighter H9 standards, making it perfect for automatic screw machines that make a lot of fasteners with little stock removal. When thread rolling or cold heading is done, where material flow rather than cutting is more important, annealed material is better because it is more flexible. Choose based on your unique production process.

Partner with Zhongyan for Premium Titanium Hex Bar Solutions

Zhongyan Titanium provides highly precise Gr2 titanium hex bar that is made to the strict ASTM B348 and ISO 5832-2 standards to meet your most demanding needs in aircraft, medicine, and chemical processing. Our Baoji integrated production plant uses high-tech cold-drawing tools and strict quality control to make sure that every hex bar meets the required mechanical properties and size limits. As a seasoned provider of GR2 titanium hex bars, we offer unique sizes ranging from 6 mm to 100 mm across flats, expert cutting services, and full mill test paperwork that can be tracked back to its source. You can email our expert sales team at sales@titaniumstudy.com to talk about your project needs, get material certifications, or get detailed quotes with competitive wait times. We're ready to help you with your purchasing needs with a reliable inventory and the ability to ship products all over the world.

References

1. Boyer, R., Welsch, G., & Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International, Materials Park, Ohio.

2. Donachie, M.J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International, Materials Park, Ohio.

3. Schutz, R.W. & Thomas, D.E. (1987). "Corrosion of Titanium and Titanium Alloys," in Corrosion: Metals Handbook, 9th Edition, Volume 13, ASM International.

4. ASTM International (2021). ASTM B348-21: Standard Specification for Titanium and Titanium Alloy Bars and Billets. West Conshohocken, Pennsylvania.

5. Peters, M., Kumpfert, J., Ward, C.H., & Leyens, C. (2003). "Titanium Alloys for Aerospace Applications," Advanced Engineering Materials, Volume 5, Issue 6, pp. 419-427.

6. Veiga, C., Davim, J.P., & Loureiro, A.J.R. (2012). "Properties and Applications of Titanium Alloys: A Brief Review," Reviews on Advanced Materials Science, Volume 32, pp. 133-148.
