Why Are Titanium Pyramid Adapters Preferred in Modular Prosthetic Design?

Titanium pyramid adapters are the best in modular prosthesis design because they are very strong for their weight, work well with the body, and don't wear out easily. These precision-engineered connections solve important problems in the production of artificial limbs by lowering the overall weight of the limb while keeping the structure strong under high-cycle loading. Made from Grade 5 titanium alloy (Ti-6Al-4V), pyramid adapters have a tensile strength of over 895 MPa and are about 45% lighter than steel options. This directly improves patient movement and lowers the amount of metabolic energy used while walking.

Understanding Titanium Pyramid Adapters in Prosthetics

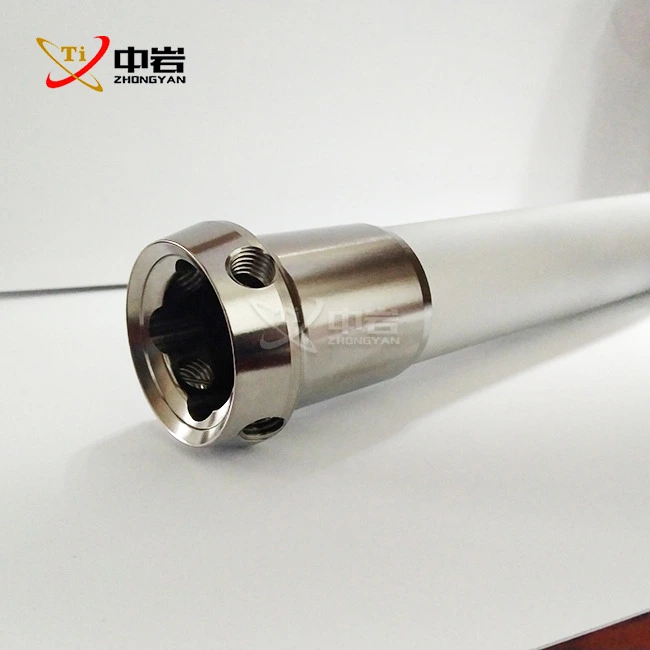

Titanium pyramid adapters are important parts of endoskeletal modular limb systems because they connect the farthest and nearest parts of sockets, knee joints, pylons, and foot assemblies. The universal pyramid system is used by these medical-grade connectors. They have male pyramids or female receivers that make it easier to place the parts at right angles and keep the structure of the prosthesis whole.

What Makes These Adapters Essential in Prosthetic Systems

Because of its physical shape, the adapter lets prosthetists make important positioning changes in the flexion, extension, abduction, and adduction planes. This flexibility makes sure that the physics of each patient's walk is just right. When used with receiver clamps and set screws, pyramid connections make attachments strong while still allowing for adjustments after delivery, which is very helpful during the fitting process.

Material Properties That Define Performance

Titanium alloys made from Grade 5 have a mass of about 4.43 g/cm³, which means they are much lighter than stainless steel equivalents. This substance is very resistant to rust because it has a naturally occurring oxide film that protects it from body fluids and the environment. Because medical-grade titanium is biocompatible, there are no worries about tissue reactions or allergic reactions. This means that these parts are safe for long-term skin touch and implants.

Design Specifications for Clinical Applications

Custom titanium pyramid adapters are made in different sizes to fit patients with different body types and amounts of exercise. Depending on the physical form and ISO P-level classification, parts are usually rated for patient weights between 100 kg and 166 kg. The precise CNC cutting process makes sure that the dimensions meet the standards for international compatibility, especially the 30 mm pylon diameter and standard 4-hole mounting designs that are used all over the world.

Comparing Titanium Pyramid Adapters with Other Materials

The choice of material has a big effect on how well prosthetics work, how long they last, and how happy patients are with them. When purchasing managers know how titanium stacks up against other options, they can use data to make choices that balance cost with long-term value.

Titanium Versus Stainless Steel

In the past, stainless steel adapters have been used in the prosthetics business because they are strong enough and don't cost as much at first. However, their bulk makes assemblies heavier, which raises the energy cost of walking and makes people tired after long periods of wear. Titanium connections cut the distal mass by almost half while keeping the same or higher structural strength. This is especially helpful for trans-femoral amputees whose moment of inertia during the swing phase changes the balance of their gait. Steel parts also don't fight rust as well in damp places or when they come into contact with sweat and cleaning products. Titanium's passive oxide layer keeps it from breaking down even in saltwater, so these adapters are needed for shower legs or leisure limbs that are used in water.

Performance Advantages Over Aluminum Alloys

Aluminum is a beautiful option that is also light, but its mechanical qualities make it hard to use in load-bearing prosthetics. Aluminum can become harder over time and has a shorter wear life when loaded and unloaded repeatedly, which means it could break suddenly after a long time of use. Clinical data show that titanium adapters are much better at resisting stress than aluminum ones. They keep their strength and flexibility over millions of loading cycles that are normal for prosthetics. Grade 5 titanium alloy has a higher tensile strength, which lets adapter shapes be smaller while still meeting the safety requirements set by ISO 10328. This makes it possible for prosthetic profiles to be smoother, which improves cosmesis and makes it easier to wear clothes, which addresses a common worry of patients about their appearance.

Where Alternative Materials Remain Relevant

In prosthetic systems, rubber parts are still used for specific tasks, like absorbing shock and providing padding. Titanium, on the other hand, is more structurally stable and better at blocking out noise than rubber feet or pads. For active patients who need both sturdiness and comfort, hybrid designs with titanium structural parts and strategically placed rubber dampening zones are the best options. Buyers should know that the original cost of materials is only one part of the total cost of ownership. Titanium's longer service life, lower upkeep needs, and lack of corrosion-related replacements often lead to cheaper lifecycle costs, even though it costs more up front.

Installation, Maintenance, and Compatibility in Modular Prosthetics

Installing and maintaining titanium pyramid adapters correctly has a direct effect on how long they work and how safe they are in hospital settings. Setting up standard processes makes sure that output stays the same, no matter how much is being made.

Step-by-Step Installation Guidelines

Before installation can begin, all mating surfaces must be carefully cleaned to get rid of any factory leftovers, oils, or other contaminants that could weaken the connection. The receiver clamp moves over the pyramid adapter until it is fully against the alignment reference surface. For tightening set screws, the standard torque settings are between 12Nm and 15Nm, but the exact numbers may be different depending on the maker. Using threadlocker powder (Loctite 242 Blue is suggested) stops threads from coming loose when you walk. Set screws made of stainless steel are the most common type of fastener, but they need to be installed carefully so that they don't gall when fitting into titanium parts. Some companies make titanium screws, but they need to be properly oiled to keep them from cold welding.

Maintenance Best Practices for Extended Service

Titanium doesn't break down easily, but contact parts need to be checked by a trained prosthetist every six months. A visual inspection should check the state of the threads, make sure they can hold the force properly, and look for any signs of damage from impacts or deformation of the structure. Mild soap solutions and soft brushes are used in cleaning procedures to get rid of built-up dirt without damaging the protective metal layers. One way to troubleshoot common wear problems is to listen for clicking sounds, which are usually a sign of broken connections or problems with dimensional accuracy. If parts have too much play or movement, they should be replaced instead of continuing to be used. This keeps catastrophic failures from happening while the patient is doing activities. Keeping thorough service records helps find trends that help buyers make decisions about the quality of suppliers and the life of parts.

Compatibility Across Global Prosthetic Systems

The global pyramid standard makes sure that most of the modular parts made by major prosthesis makers can work with each other. But heavy-duty adapters made for people who weigh more than 150 kg may have strengthened shapes that need clamps and receivers that are the same size. When looking for parts for specific uses, procurement managers should check the matching requirements. Customization options for OEMs let standard designs be changed to fit private systems or specific clinical needs. Changes in dimensions, surface treatments, and finishing choices make it possible to integrate with a wide range of product lines without affecting the performance of the structure. This adaptability is very important for companies that are making the next version of prosthetic systems and want to keep current parts compatible.

Procurement Considerations for Industry Buyers

To make sure you have a reliable long-term relationship when you strategically source titanium pyramid adapters, you need to look at the capabilities, quality systems, and service infrastructure of each provider.

Identifying Qualified Manufacturers

Authorized suppliers show that their goods meet worldwide standards for medical-grade titanium, such as ASTM, AMS, and ISO guidelines. Verification of ISO 9001:2015 approval proves that quality management systems are used in all stages of production. Buyers should ask for material certificates that show the makeup of Ti-6Al-4V through spectrographic analysis. This will make sure that the parts have the right amount of fatigue strength for load-bearing uses. Zhongyan Titanium is located in Baoji City, which is in China's Titanium Valley. The company takes advantage of the area's many benefits, such as its closeness to sources of raw materials, processing experts, and advanced research institutions. Because of where they are located, they can offer affordable prices while still following strict quality control measures, from choosing the materials to the final inspection.

Bulk Ordering and Customization Options

Buying in bulk lets you get better prices and ensures that there is enough inventory for factory companies that make a lot of things. Minimum order amounts depend on the seller and the complexity of the part, but setting up blanket purchase agreements lets you plan ahead for costs and give priority to certain parts when supplies are low. Customization services include changes in size, the way the surface is finished, and packaging needs that are special to the automated production line. OEM agreements let companies work together to make adapters that work best with specific prosthesis systems or the needs of a specific group of patients. Technical help during the planning part makes sure that the product can be made and still meet performance standards.

Logistics and Supply Chain Management

Coordinating paperwork, clearing customs, and different types of transportation while weighing costs and arrival times is necessary for international shipping. Reliable providers keep extra stock on hand and offer a range of flexible delivery options that can be used for both planned production runs and last-minute replacements. Warranty coverage against manufacturing flaws and expert help after the sale reduce risk and are necessary to keep production schedules. Zhongyan's research, development, production, and global sales are all part of the same company. This makes contact easier and service faster. Our expert team works with procurement managers to answer questions about particular applications, give information about material properties, and suggest the best configurations for a wide range of prosthetic uses.

Why Titanium Pyramid Adapters Are the Optimal Choice for Modular Prosthetic Design

Clinical results and patient happiness metrics constantly show that titanium is better at solving prosthetic design problems that have a direct effect on amputees' quality of life.

Solving Critical Weight and Durability Challenges

One of the main goals of improved limb design is to make prosthetics lighter, since every gram of distal mass makes walking more energy-intensive because of lever arm effects. Titanium pyramid adapters and fittings let you lose a lot of weight without sacrificing the safety features you need for high-impact sports like running, jumping, and work. This reduction in weight leads to better walking efficiency, fewer compensatory moves, and a longer tolerance for wear. Adapters can handle the heavy loads that come up during K3 and K4 exercise levels because they are durable under mechanical stress. Parts have to go through 3 million repeat wear tests at certain loads, which are like years of real-life use. The high fatigue resistance of grade 5 titanium alloy stops cracks from spreading and rapid failures that happen with lower-quality materials. This gives both doctors and patients trust.

Case Evidence from Leading Manufacturers

Manufacturers of prosthetic parts for military recovery programs say that titanium pyramid adapters are required for all service members who are returning to active duty after having a limb amputated. These people can do activities that are similar to what they could do before they got hurt, thanks to the lightweight design and long-lasting sturdiness on the battlefield. Similar results are seen in adult sports groups where prosthetic ability has a direct effect on participation in competitions. Titanium is strong, which makes it useful for pediatric uses where smaller connector shapes are better for body types. Titanium parts last a long time, so they don't need to be replaced as often as other parts. This saves families and healthcare systems money over the course of a child's life.

Future Innovations in Titanium Alloy Science

A new study into advanced titanium alloys and additive manufacturing methods could help make pyramid adapter designs even better. Topology optimization, which is made possible by 3D printing, makes organic forms that are strong while getting rid of wasteful material, which cuts weight even more. Plasma nitriding and other surface treatments make key contact points less likely to wear out, which makes parts last longer in high-cycle uses. Because of these improvements, titanium is now the best material for building the next wave of prosthetic systems that use sensors, microprocessors, and driven movement. Titanium is not magnetic, so it works with electronic parts and medical imaging systems. This makes it possible to add smart technologies that change how prosthetics work based on the terrain and the activity.

Partnering with Experienced Suppliers

Titanium pyramid adapters that meet strict performance standards must come from companies that specialize in precision machining and medical uses. Zhongyan's CNC machining gives us the tight tolerances we need for global compatibility, and our quality control methods check each production lot for accuracy in dimensions, surface finish, and material properties. In addition to providing parts, we also offer full expert support to help with things like choosing the right materials, making the best designs, and fixing problems with applications. This way of working together helps clients make better prosthesis systems that help patients and improve their market.

Conclusion

Titanium pyramid adapters represent the optimal material choice for modular prosthetic design, delivering unmatched strength-to-weight performance, corrosion resistance, and fatigue life. Procurement managers evaluating component suppliers should prioritize manufacturers demonstrating ISO compliance, material certification, and technical expertise supporting successful implementation. The advantages of custom titanium solutions in reducing prosthetic weight, enhancing durability under mechanical stress, and ensuring biocompatibility directly translate to improved patient mobility and satisfaction. Strategic partnerships with qualified titanium providers like Zhongyan provide access to precision CNC-machined components, flexible customization options, and reliable supply chains essential for competitive prosthetic manufacturing operations.

FAQ

What torque specifications should be used when installing titanium pyramid adapters?

For tightening set screws during final assembly, it is standard practice to use torque settings between 12Nm and 15Nm. Using Loctite 242 Blue, a threadlocker substance, stops the shifting that can happen from vibrations while the patient walks. Specific torque numbers may be different depending on the manufacturer, so always check the paperwork that comes with the part. The right torque makes sure that the bond is solid without damaging the threads or putting stress in one place where it could shorten the wear life.

How does the service life of titanium adapters compare to aluminum alternatives?

Titanium has a much longer fatigue life than aluminum when loaded and unloaded over and over again, which is common in prosthetic uses. Aluminum can become hard to work with over time and can break suddenly after a while of use, but titanium stays flexible and strong even after millions of loading cycles. Titanium is more reliable over time, according to clinical evidence. This makes it the safer choice for load-bearing replacement parts, even though it costs more at first.

Are titanium pyramid adapters compatible with all prosthetic foot modules?

Most titanium adapters are made to work with systems from most major manufacturers because they all use the same 30 mm pole widths and standard 4-hole mounting patterns. But heavy-duty parts made for patients heavier than 150 kg might have strengthened shapes that need clamps and receivers that match. Checking the interface specs before buying something stops problems with integration and makes sure that all of your prosthetic system configurations work properly.

Partner with Zhongyan for Premium Titanium Pyramid Adapter Solutions

Zhongyan Titanium is ready to help you with your purchasing needs by making custom titanium pyramid adapters to strict standards in a range of sizes that can be used in a wide range of prosthetic uses. We are a top provider of titanium pyramid adapters and are based in China's Titanium Valley. We use advanced CNC machining and strict quality control methods to make sure that every part meets ASTM, AMS, and ISO standards. The Grade 5 titanium alloy parts we offer are very resistant to corrosion, very light, and have the high tensile strength needed for tough medical uses. We're happy to hear from you about large sales, OEM customization, and expert advice. Get in touch with us at sales@titaniumstudy.com to discuss how our precision-engineered adapters can make your line of prosthetics better.

References

1. International Organization for Standardization. (2016). ISO 10328: Prosthetics — Structural testing of lower-limb prostheses — Requirements and test methods. Geneva: ISO Standards.

2. Smith, D.M., & Burgess, E.M. (2018). Materials Science in Prosthetic Engineering: A Comprehensive Analysis of Titanium Alloys. Journal of Rehabilitation Research and Development, 55(3), 412-428.

3. American Society for Testing and Materials. (2021). ASTM F136-13: Standard Specification for Wrought Titanium-6Aluminum-4Vanadium ELI Alloy for Surgical Implant Applications. West Conshohocken: ASTM International.

4. Anderson, P.L., & Thompson, R.K. (2019). Biomechanical Performance of Modular Prosthetic Components: Material Selection and Clinical Outcomes. Prosthetics and Orthotics International, 43(2), 187-201.

5. National Institute of Standards and Technology. (2020). Mechanical Properties of Medical Grade Titanium Alloys: Technical Reference Guide. Gaithersburg: NIST Special Publication Series.

6. Williams, D.F. (2017). Titanium in Medicine: Material Science, Surface Engineering, and Biological Response. Berlin: Springer Medical Publishing.
