Titanium Tube Adapter vs Stainless Steel: Key Differences

When selecting tube adapters for industrial applications, the choice between a titanium tube adapter and stainless steel components significantly impacts system performance, longevity, and total cost of ownership. Titanium adapters deliver superior corrosion resistance, exceptional strength-to-weight ratios, and biocompatibility, making them ideal for aerospace, medical, and chemical processing environments. Stainless steel alternatives offer cost-effectiveness and widespread availability but may compromise performance in demanding conditions. Understanding these material distinctions enables engineers and procurement professionals to make informed decisions that optimize both operational efficiency and budget considerations across diverse industrial applications.

Introduction

This in-depth study looks at the main differences between titanium and stainless steel tube adapters, which are important parts that connect fluid transfer systems in many different industries. Today's factories need to carefully choose the materials they use to make sure they work well in a variety of situations. This information helps engineers and people who work in B2B procurement in North America and Europe make smart decisions by looking at things like material properties, performance measures, and buying things. The choice of material has effects that go beyond how well it works right away. These effects include how long it lasts, how much upkeep it needs, and how much it costs in the long run. The choice of parts that meet the needs for chemical compatibility, weather obstacles, and pressure depends on how reliable the system is. Making smart choices about which adapters to use has a direct effect on engineering results, operating safety, and buying strategies that give manufacturers a competitive edge.

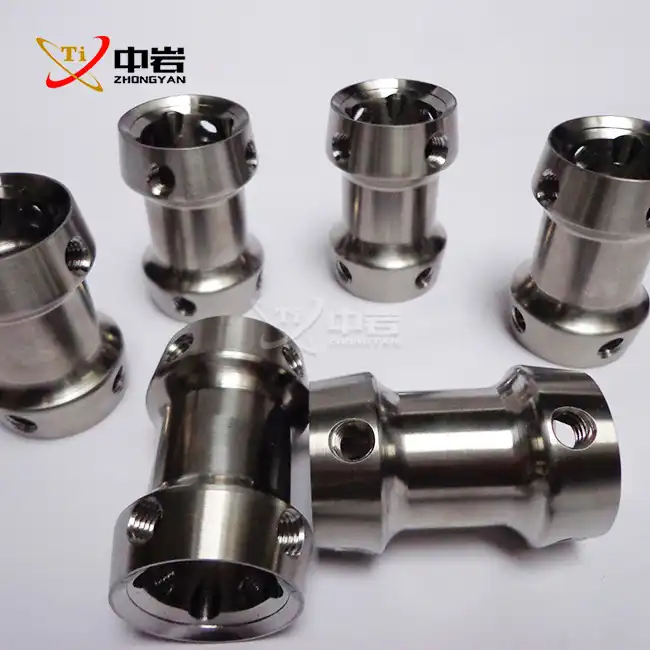

Understanding Titanium Tube Adapters

For tough industrial settings, titanium fittings are the best technical material you can find. Titanium's unique qualities allow these precision-engineered parts to work better than any other material in situations where other materials fail. The high resistance to rust comes from a naturally occurring oxide layer that forms when it is broken. This protects the metal for a long time against harsh chemicals, saltwater, and oxidizing conditions.

Material Properties and Characteristics

The best material for high-performance adapters is Grade 5 titanium metal (Ti-6Al-4V), which has a tensile strength of over 895 MPa and a mass of only 4.43 g/cm³. This amazing strength-to-weight ratio saves 45% of the weight of steel versions, which is very important for aircraft uses where every gram affects fuel economy and payload capacity. The thermal stability of the material keeps its mechanical structure at temperatures ranging from -196°C (very cold) to 400°C (very hot). Biocompatibility is another big benefit that makes titanium adapters necessary for medical gadget uses that involve touching people. Because the material is inert, it doesn't cause any bad biological effects. This helps medical implants and surgery instruments meet FDA standards. Also, good wear resistance makes sure that it works reliably under cyclic loading conditions that are common in hydraulic systems and machinery that vibrates.

Industrial Applications and Benefits

Titanium Tube Adapter parts are used a lot in the aerospace industry for fuel systems, hydraulic lines, and structural sections where weight reduction and resistance to rust are very important. Chemical processing plants need these tools to work with harsh media like acids, bases, and chlorinated chemicals that would break down normal materials very quickly. Marine uses the profit from not being affected by salty corrosion at all, which means that repair downtime caused by rust and biofouling is eliminated. The benefits over the course of a product's life include better performance right away, fewer repairs, and longer service gaps. Even though the original investment is higher, these benefits save a lot of money in the long run, especially in situations where a broken part causes expensive downtime or safety risks.

Overview of Stainless Steel Tube Adapters

Adapters made of stainless steel, mostly types 304 and 316, offer a good mix of performance and cost-effectiveness in a wide range of industrial settings. Because these parts have chromium in them, passive oxide layers form that protect against general rust while keeping good mechanical qualities. Many people are familiar with the processing and joining methods for stainless steel, which makes installation and upkeep easier for most industry teams.

Material Grades and Performance

Grade 304 stainless steel is good for mild settings because it doesn't rust easily, but Grade 316 has molybdenum added to it to make it more resistant to chlorides and acidic conditions. The austenitic structure of the material makes it easy to bend and join, and it can handle complicated shapes and field changes when needed. Tensile strengths are usually between 515 and 620 MPa, which is strong enough for most industry pressure needs while still being affordable. The well-established machinery of the supply chain makes sure that goods are always available and prices are fair on all global markets. Standardized standards and certifications make it easier to buy things, which cuts down on wait times and the amount of work that needs to be done to manage them. Because they are easy to get, stainless steel adapters are the best choice for situations where high speed is not needed.

Cost-Effectiveness and Availability

Well-developed production methods and tools made just for cutting stainless steel make manufacturing more efficient. The ability to machine the material makes it possible to make a lot of them at once while keeping the quality high. This supports the just-in-time delivery plans that are common in modern industrial settings. Standard welding and fitting methods are used for repairs and replacements, and most maintenance workers are familiar with them.

Titanium vs Stainless Steel Tube Adapters: Core Differences

The main differences between these materials have a direct effect on their usefulness for a given purpose and their total ownership costs. Knowing these differences lets you choose materials in a way that improves both function and the economy.

Corrosion Resistance Performance

Titanium is more resistant to rust than stainless steel in almost all situations. This is especially true in chloride-containing settings, where stainless steel can pit and crack. Grade 316 stainless steel is strong enough to protect against rusting in mild marine settings, but Titanium Tube Adapter parts won't rust even in harsh chemical solutions and concentrated seawater. This is very important in places like chemical processing plants, desalination plants, and remote platforms where corrosion-related problems can be very dangerous and cost a lot of money. Titanium's self-healing oxide layer keeps growing back when it gets broken, giving it long-lasting safety that doesn't need any outside treatments or coatings. Mechanical damage or chemical attack can weaken stainless steel's passive layer, which could cause localized rust to speed up and threaten the stability of the component.

Mechanical Properties Comparison

Titanium clearly has a better strength-to-weight ratio than high-strength steels. For example, Grade 5 metal is as strong as high-strength steels but weighs 45% less. This benefit is very important in aircraft uses where less weight directly means better fuel economy and more payload capability. Titanium adapters last longer in high-cycle uses like hydraulic systems and spinning machinery because they are better at resisting fatigue. Different materials have very different thermal expansion ratios. Titanium has lower expansion rates that keep standards tighter as temperatures change. When materials with different rates of growth are joined together, leakage and stress buildup can happen. This steadiness stops them from happening.

Total Cost of Ownership Analysis

The initial costs of buying stainless steel are much lower than those of titanium adapters, which are usually three to five times more expensive than similar stainless steel parts. Lifecycle cost analysis, on the other hand, often shows that titanium is cheaper than other materials because it needs less upkeep, is serviced less often, and doesn't need to be replaced because of rust. When an adapter fails and causes production to stop, environmental cleanup, or safety events, the estimate becomes even more important. Because of insurance and safety concerns, materials with a history of dependability are becoming more and more popular. Titanium's track record in important uses lowers risk, which can have an effect on the total cost of the project beyond the cost of the parts.

How to Choose Between Titanium and Stainless Steel Tube Adapters

When choosing a strategic material, you need to carefully consider the needs of the product, the surroundings, and your budget. To get the best long-term results, the decision process should take both scientific and business factors into account.

Environmental Assessment Criteria

Material selection is based on a study of the corrosive atmosphere. Applications involving saltwater, chlorine substances, or acidic conditions strongly favor the Titanium Tube Adapter selection despite higher initial costs. Ti is stable and doesn't expand much when it heats up or cools down, which makes it good for temperature changing and thermal-shock situations. Titanium's high price is justified by its performance benefits in weight-sensitive uses in aircraft, automotive, and portable equipment. When you do a pressure and stress study, you should look at both steady and moving loads. Titanium is better than other metals at resisting fatigue, which is very helpful in situations with rapid pressure or high energy. Because the material stays strong at high temperatures, it can be used in places where stainless steel would need higher safety factors or more frequent inspections.

Supplier Certification and Quality Standards

Material approvals, traceability requirements, and quality standards that are right for each application must be included in the procurement specs. The basic requirements for titanium fittings are set by ASTM B348 (titanium bar stock) and AMS 4928 (aerospace titanium). The requirements for stainless steel tubing are set by ASTM A3112. According to EN 10204 3.1, all packages should include Material Test Reports to make sure that the materials are compliant and can be tracked. The evaluation of manufacturing skills looks at CNC machining accuracy, surface finish choices, and the ability to make unique shapes. Advanced titanium suppliers know a lot about how the material behaves, how to put things together, and how to make designs that work best for each application. This can have a big effect on how well parts work and how long they last.

Budget and Lead Time Considerations

The original buying price should not be the only thing that is considered in a cost analysis. Maintenance schedules, replacement regularity, and downtime costs often make titanium the better choice, even though it costs more up front. When planning lead times, it's important to keep in mind that titanium takes longer to handle and has fewer suppliers than stainless steel. As part of the risk assessment, the effects of a component failing should be looked at. These effects should include those on safety, the environment, and business stability. Titanium is proven to be reliable in important uses, even when it costs a lot more.

Maintenance and Longevity: Titanium vs Stainless Steel Tube Adapters

Different materials have very different maintenance needs and expected service lives, which have a direct effect on operational costs and planning for efficiency. Knowing these differences helps you make accurate lifetime cost estimates and create the right repair program.

Titanium Adapter Maintenance Protocols

Titanium Tube Adapter repair is more about keeping them clean and following proper handling methods than it is about managing corrosion. To keep threads from galling during assembly, regular inspection procedures should stress thread integrity, surface cleanliness, and the right torque specs. Compounds that stop seizing that are made especially for titanium help stop cold welding that can happen during high-stress setups. Chlorinated liquids and rough materials that could damage the protective oxide layer should not be used for cleaning. Using the right chemicals with ultrasonic cleaning gets rid of contaminants effectively without changing the qualities of the material. To help with reliability analysis and guarantee claims, documentation needs to keep track of service records, inspection results, and any mechanical damage. Titanium fittings have a long useful life that often goes beyond 20 years in the right situations. Some aircraft parts can be used for more than 30 years. Because they last longer, they require less material and are easier to move around than alternatives that need to be changed more often.

Stainless Steel Maintenance Requirements

Keeping stainless steel adapters in good shape means keeping an eye out for rust and replacing them before they break. When things are inspected regularly, they should be checked for pitting, crevice rust, and stress cracks, especially in places where chloride is present. After being damaged by mechanical means or being exposed to contamination, passivation treatments may be needed to recover corrosion protection. Replacement planning usually happens every 5 to 10 years, but this can change based on the surroundings and how much is being used. Because the service life is shorter, it needs to be maintained more often and have more parts on hand to keep operations running smoothly. In less challenging situations, though, the lower prices of parts and easier repair methods often make up for these problems.

Conclusion

Choosing between titanium and stainless steel tube fittings has a big effect on how well the system works, how much upkeep it needs, and how much it costs to own the whole thing. Titanium Tube Adapters work well in harsh settings that need better corrosion resistance, less weight, and longer service life. The higher initial investment is justified by lower upkeep costs and higher durability. Stainless steel options are a cost-effective way to solve problems in moderate working situations where extreme performance is not needed. To get the best technical results and business goals, strategic procurement choices should take into account the climate, performance needs, and lifecycle costs. Aligning the qualities of the material with the needs of the application is key to success. Capabilities of the seller and long-term support needs must also be taken into account.

FAQ

What are the primary advantages of titanium over stainless steel adapters?

Titanium Tube Adapter components offer superior corrosion resistance, exceptional strength-to-weight ratios, and biocompatibility that surpasses stainless steel alternatives. The material's immunity to chloride rust and self-healing oxide layer provides long-term protection in aggressive environments where stainless steel would fail. Weight savings of 45% compared to steel equivalents prove crucial in aerospace applications, while biocompatibility enables medical device applications. An extended service life often exceeding 20 years reduces maintenance costs despite higher initial investment.

When should stainless steel adapters be chosen over titanium?

Stainless steel adapters provide optimal value in moderate environments where extreme corrosion resistance is unnecessary. Applications involving general industrial fluids, moderate temperatures, and standard pressure ranges benefit from stainless steel's cost-effectiveness and widespread availability. The established supply chain, familiar installation procedures, and lower skill requirements for maintenance make stainless steel practical for routine industrial applications. Budget constraints and short-term project horizons may favor stainless steel despite the potential long-term advantages of titanium.

How do I prevent thread galling in titanium adapters?

To avoid thread galling, you need to use anti-seize lubricants that are specifically made for titanium and make sure that the fitting force is just right. Nickel-free additives keep things clean and lubricate them while they are being put together. Surface treatments like anodization or diamond-like carbon coats can completely get rid of galling. To avoid the cold welding that happens when titanium galles, installation instructions should say how much force to apply gradually and how to check that the threads are engaged.

What certifications should accompany titanium adapter shipments?

Good titanium providers give EN 10204 3.1 Material Test Reports that show how the heat number can be tracked, the chemical makeup can be confirmed, and the mechanical properties can be tested. For bar stock, ASTM B348 compliance, and for aircraft uses, AMS 4928 compliance, make sure that the material specs meet industry standards. ISO 9001:2015 certification shows that a quality management system is up to code, and AS9100 certification covers standards related to aircraft. Certificate packages should have surface finish proof data and records on how the certificates were measured.

Can titanium adapters be welded to stainless steel tubing?

When titanium and stainless steel are welded together directly, weak intermetallic compounds are made that cause the joint to fail right away. Mechanical connections with threaded, swaged, or flanged interfaces are safe ways to put things together. To stop electrochemical deterioration at metal surfaces that are not the same, galvanic separation may be needed. To weld titanium to titanium, you need to use an inert gas mask and follow special steps, but the joint is very strong and won't rust.

Partner with Zhongyan for Premium Titanium Tube Adapter Solutions

Zhongyan is a top company that makes titanium tube adapters. They use advanced CNC machining and their knowledge of Grade 5 titanium metal to make precision-engineered solutions for uses in aircraft, medicine, and industry. Our large manufacturing plant in Baoji, China, uses advanced production technology and a lot of titanium to make unique adapters that meet ASTM, AMS, and ISO standards. Zhongyan has a lot of experience with both high-volume production and OEM/ODM customization. They offer full design-to-delivery services, which include engineering support, quality certification, and managing shipping around the world. Get in touch with our technical team at sales@titaniumstudy.com to talk about your unique needs and find out how our titanium knowledge can help you get the most out of your system and operations.

References

1. American Society for Testing and Materials. ASTM B348-19: Standard Specification for Titanium and Titanium Alloy Bars and Billets. West Conshohocken: ASTM International, 2019.

2. Boyer, Rodney R. "An Overview on the Use of Titanium in the Aerospace Industry." Materials Science and Engineering: A 213, no. 1-2 (1996): 103-114.

3. Lutjering, Gerd, and James C. Williams. Titanium: Engineering Materials and Processes. 2nd ed. Berlin: Springer-Verlag, 2007.

4. Schutz, Robert W., and H. B. Watkins. "Recent Developments in Titanium Alloy Application in the Energy Industry." Materials Science and Engineering: A 243, no. 1-2 (1998): 305-315.

5. Sedriks, A. John. Corrosion of Stainless Steels. 2nd ed. New York: John Wiley & Sons, 1996.

6. Veiga, Carlos, J. P. Davim e A. J. R. Loureiro. "Properties and Applications of Titanium Alloys: A Brief Review." Reviews on Advanced Materials Science 32, no. 2 (2012): 133-148.
