Titanium Grade 5 Plate: How to Optimize for Weight and Strength?

A titanium grade 5 plate needs to be balanced in terms of its weight and strength. This can be done by choosing the right alloy makeup, heat treatment conditions, plate thickness, and manufacturing methods. Engineers usually pick Ti-6Al-4V plates that have been annealed or solution-treated and aged (STA) conditions. The specs are changed based on the load needs and the design limitations. Correct optimization lowers the amount of material needed without affecting the strength of the structure. This saves money and improves performance in medical, industrial, and aircraft settings.

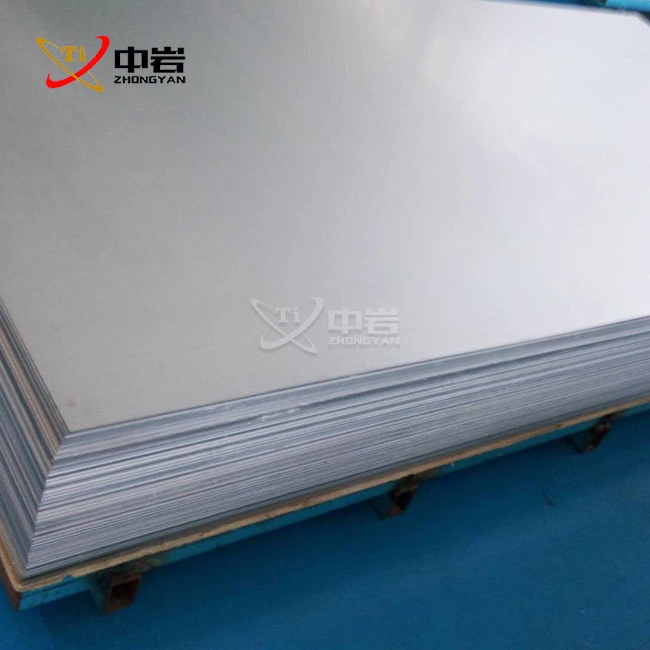

Understanding Titanium Grade 5 Plate: Composition and Key Mechanical Properties

When buying, teams look at materials for important uses; they need to know about the metallurgical basis. This titanium grade 5 plate is commonly known as Ti-6Al-4V in scientific terms. It is a complex mix that was made to meet performance needs that regular materials can't meet.

The Alloy Architecture Behind Superior Performance

Elements of this alpha-beta titanium metal include about 6% aluminum, 4% vanadium, and the rest is titanium. Aluminum acts as an alpha-phase buffer, making the material stronger at room temperature and less likely to grow when it gets hot. As a beta-phase adjuster, vanadium makes the metal more flexible, easier to join, and more responsive to heat treatment. This dual-phase microstructure makes a material with a tensile strength of more than 895 MPa and a density of only 4.43 g/cm³, which is about 60% of steel. The structure of the metal directly solves two long-standing engineering problems: aircraft frames that are too heavy and high-performance machines that don't have enough strength-to-weight ratios.

Mechanical Properties That Drive Material Selection

The functional profile of this metal is what makes it so popular in tough industries. The minimum tensile strength is 895 MPa, and the minimum yield strength is 828 MPa. This gives structure estimates a lot of room for error. The hardness is about 36 HRC, which means it is very resistant to wear in work settings. The wear strength stays strong even after millions of load cycles, which is important for parts of airplanes and medical items that are stressed over and over again. When used at temperatures ranging from cryogenic to 400°C, these qualities stay the same. However, oxidation rates speed up above 400°C. Material tracking paperwork that meets ASTM B265, AMS 4911, and ISO 5832-3 standards makes sure that stability from batch to batch, so engineers can confidently make specifications.

Heat Treatment Effects on Mechanical Characteristics

Annealed plates have qualities that are well-balanced and good for most uses. They are moderately strong and very flexible for shaping. Solution-treated and aged (STA) processing raises the tensile strength by 15–20%, hitting levels above 1000 MPa, but it does so at the cost of some extension. For this heat treatment, the solution is heated to about 955°C, the metal is quickly cooled, and then it is aged at about 540°C for a few hours. The material that forms is precipitation-hardened, which makes parts that are more likely to break stronger in landing gear systems and turbine engine sections. When procurement managers know about these treatment choices, they can define material conditions that are in line with design loads and fabrication needs.

Comparing Titanium Grade 5 Plate with Other Plate Materials

Comparative analysis that goes beyond the original cost of acquisition is key to making choices about which materials to use. Comparing options to titanium grade 5 plate shows clear performance differences that support material choices in a range of application settings.

Titanium Grade 5 versus Commercially Pure Titanium

Grade 2 widely pure titanium is very easy to shape and doesn't rust in harsh chemical conditions, which makes it perfect for chemical plant process equipment. But its tensile strength is only about 345 MPa, which is only about a third of Grade 5's. When design needs are set by structural loads or weight limits, the alloyed form is the only one that can work. The difference in strength directly leads to thinner plates and lighter parts, which often make up for the 30–40% price increase by saving money on fuel or machine size later on.

Performance Against Stainless Steel and Aluminum Alloys

When you compare 316 stainless steel, you can see some interesting trade-offs. When it comes to tensile strength, stainless steel is about 40% less expensive than steel and doesn't rust in many settings. The difference in mass is big: titanium weighs 4.43 g/cm³, while stainless steel weighs about 8 g/cm³. Even though they cost more up front, titanium plates have real practical benefits in aircraft uses where every kilogram affects payload capacity and fuel economy. Aluminum alloys like 7075-T6 have a lower density of 2.81 g/cm³ and are cheaper, but their tensile strength is only 572 MPa, and they can crack from stress rust in marine settings. When used in corrosive environments, the titanium metal lasts longer and is stronger over time, while aluminum quickly loses its mechanical qualities at high temperatures.

Total Cost Analysis in Procurement Decisions

To evaluate price-to-performance ratios, you need to look at the whole lifetime, not just the buy order. Ti-6Al-4V plates are expensive because they are hard to get and process, but the material doesn't rust, so it doesn't need a protective layer in many situations. Total cost of ownership is lower over decades of component lifecycles because repair times are shorter, service lives are longer, and parts can be made lighter. More and more, procurement professionals are starting to see these benefits. This is especially true in aircraft structures, where reducing weight directly improves fuel economy and in medical devices, where biocompatibility and life make the investment worthwhile.

How to Optimize Your Titanium Grade 5 Plate Selection for Weight and Strength

To get the best weight-to-strength ratios, you need to carefully look at the design limits that are specific to the application, the manufacturing methods, and the specification factors. The optimization process combines the concepts of materials engineering with real-world production issues. This ensures every titanium grade 5 plate used meets the highest performance criteria.

Strategic Factors in Specification Development

Choosing the alloy state is the main optimization tool. Annealed plates are great for projects that need moderate strength and a lot of shaping or bonding. They are also very flexible during the production process. STA-treated plates are the strongest for load-bearing buildings, where losing weight is worth the extra processing costs. Plate thickness affects both weight and structural capacity directly. FEA allows exact thickness optimization, getting rid of extra material while keeping safety factors at a good level. The type of surface finishing affects how well it resists wear. In cycle loading cases, machined or ground surfaces are better at resisting cracks than mill-finish plates.

Customization Principles for Application-Specific Requirements

Customizing the dimensions cuts down on wasteful materials and the costs of cutting that come after. Custom-cut plates supplied to near-net forms lower buy-to-fly ratios, which is especially helpful when raw materials are a big part of the cost. When thickness tolerances are set to be tighter than normal mill tolerances, surface grinding doesn't have to be done after delivery for precision uses, but the price goes up a little. Plates that are contoured or pre-formed can fit complicated shapes and reduce the work needed to make them while keeping the material's properties by using controlled forming methods. In order for these customization choices to work, procurement teams must work closely with sellers who can add value through processes.

Real-World Optimization Case Studies

By replacing aluminum parts with improved Ti-6Al-4V plates, an aerospace maker cut the weight of an airplane's structure by 18%. Engineers asked for STA-treated material that was thinner, so they could use the higher strength to keep the structure's edges while getting rid of the extra mass. The lighter materials meant that the payload capacity went up and fuel use went down. The material extra was paid back within 24 months of operating service.

Actionable Takeaways for Procurement Teams

A thorough load study and environmental risk estimate are the first steps to successful optimization. Get sources involved early in the planning process to find ways to make changes that will lower the overall cost of the program. Instead of reverting to annealed material, specify the heat treatment conditions that meet the needs of the application. When standard sizes lead to overdesign, think about custom thickness choices. Compare the specs for the surface finish with the requirements for fatigue and rust to avoid buying extra features that aren't needed.

Sourcing and Procurement: Tips for Buying Titanium Grade 5 Plate

When buying unique materials, it's important to pay attention to the qualifications of the suppliers, the paperwork that needs to be filled out, and the transactional processes that make sure the quality of the titanium grade 5 plate and the dependability of the supply chain.

Supplier Evaluation and Certification Requirements

Suppliers who are qualified keep certifications that show they can control processes and handle quality. Standardized quality systems are shown by ISO 9001:2015 certification, while aircraft suppliers usually have AS9100 certification, which shows they meet the needs of their business. Material test reports (MTRs) must be sent with every package. They list the chemical makeup, mechanical qualities, and heat treatment history for each production lot. When buying things for important uses, third-party checking services offer independent confirmation. Supplier audits check how well a company can make things by looking at things like production tools, quality control methods, and how the company moves materials in ways that affect the regularity of the products they make.

Material Traceability and Standards Compliance

Strict paperwork for traceability connects finished plates to the sources of raw materials, records of processing events, and records of quality checks. As the main industry standard, ASTM B265 says what titanium and titanium alloy plate, sheet, and strip must be made of and what their properties must be. AMS 4911 has standards that are specific to flight, such as tighter tolerances and more testing procedures. For surgical implant materials, medical uses use ISO 5832-3, which requires checking for biocompatibility and higher cleaning standards. Specifications for purchases must clearly list any relevant standards. This makes sure that sellers know what is expected of them in terms of compliance and testing.

Operational Procurement Considerations

Minimum order numbers vary a lot from one provider to the next, ranging from custom orders of one piece to production runs of several tons. Lead times are usually between 6 and 12 weeks, but they can be shorter or longer based on the material, its size, and any customizations that need to be made. Faster handling is available for an extra fee. International operations need to be carefully coordinated so that the right packing keeps surfaces from getting damaged and the right paperwork makes it easier to get through customs. Choosing the right Incoterms affects how costs are split and how risk is transferred. For example, DDP (Delivered Duty Paid) terms make foreign purchasing easier, but they come with higher prices than EXW (Ex Works) terms, which require the buyer to handle logistics.

Value-Added Services That Enhance Supply Chain Efficiency

When suppliers offer combined services, it's easier to buy things and projects get done faster. Custom cutting to finished measurements gets rid of the need for rough grinding in-house and makes better use of materials. Tolerances for flatness and thickness can be set with precision surface grinding, which is very important for uses that need tight control over stack-up. Cutting with a water jet or laser makes complicated shapes with few areas where the heat affects the material, so the qualities of the material near the cut edges are kept. Some suppliers offer full cutting services that turn plates into finished parts and make the supply chain more efficient by reducing the number of providers needed.

Building Strategic Supplier Partnerships

Long-term relationships with reliable providers have benefits for both sides that go beyond just making transactions go more smoothly. When supply is limited, volume agreements can often open the door to better prices and faster distribution. Technical teamwork makes material specifications better by giving suppliers more information about how to handle materials and new alloys. Inventory systems that are handled by vendors make it easier to keep track of things and make sure that materials are available on time for production schedules. When it comes to titanium markets, where production capacity is concentrated and handling knowledge is very specific, relationship investments pay off big time.

Enhancing Performance with Heat Treatment and Coating for Titanium Grade 5 Plates

Treating materials after they have been processed adds to their abilities beyond their basic properties. Post-processing can solve problems in certain applications by changing the surface and bulk properties of the titanium grade 5 plate in specific ways.

Heat Treatment Methods for Property Enhancement

Solution treatment and aging are the main ways that this metal system gets stronger. The process starts with solution treatment at temperatures ranging from 900 to 955°C, which dissolves the vanadium-rich beta phase all over the nanostructures. This oversaturated structure is frozen by rapid cooling. It is then aged at 480–650°C for two to eight hours. Fine Ti3Al particles form in the alpha phase because of the aging treatment. These particles stop dislocations from moving, which increases strength. Processing conditions need to be carefully managed; aging at too high of temperatures or for too long of a time creates rough particles that weaken the material, while aging too little prevents it from reaching its full strength potential.

Surface Treatment and Coating Technologies

Stress relief annealing gets rid of any remaining stresses from welding or shaping without changing the strength levels much. The process usually takes place at temperatures between 650°C and 760°C for long enough to relax internal pressures. This makes the material more stable in its dimensions and less likely to crack from stress corrosion. Stress relief is especially helpful for complicated parts that are welded together because the locking-in pressures could cause warping during the finishing process. Chemical conversion coats make it easier for paint to stick and protect against light corrosion. Anodizing makes a stronger oxide layer that is better at resisting wear and keeping electricity from flowing through it.

Maintenance Practices for Long-Term Performance

To keep the mechanical integrity during active service, cleaning and exposure to the surroundings must be carefully considered. Inspections done on a regular basis find surface damage or the start of rust that needs to be fixed. With ultrasonic testing, internal flaws or cracks in important structures can be found, allowing for preventative repair before they fail. If you store titanium properly, it won't get contaminated. Titanium surfaces easily take hydrogen from acidic or reducing environments, which weakens the metal and lowers its mechanical qualities. When stored in a clean, dry place with protected wrapping, the material stays in good shape for a longer time.

Conclusion

To get the best weight and strength from Ti-6Al-4V plates, you have to think about the alloy's state, the plates' dimensions, the conditions for heat treatment, and the best way to make them based on the needs of the application. The material's high strength-to-weight ratio, resistance to corrosion, and temperature stability make it the standard in aircraft, medicine, and high-performance industry settings, even though it costs a lot. To do good buying, you need to work with qualified providers who can offer full certifications, material traceability, and processing that adds value. Using comparative analysis and real-world case studies to guide strategic design development leads to measurable performance and cost gains across the lifecycles of components. This basic titanium grade 5 plate is becoming more useful in new situations where high-quality materials make all the difference. This is happening as manufacturing technologies improve and design methods get more complex.

FAQ

What applications benefit most from using Ti-6Al-4V plates?

Aerospace structure parts, aircraft engine parts, and landing gear sections are the main places where the alloy's higher strength-to-weight ratio improves performance. Biocompatibility and corrosion resistance are important for medical implants like spine fusion devices, joint replacements, and oral implants. Marine uses benefit from having high resistance to corrosion in salt water. The material's ability to withstand chlorides and acidic conditions at high temperatures is used in chemical processing equipment.

How does the price compare to other building materials?

Per kilogram, titanium grade 5 plate usually costs three to five times more than stainless steel plates of the same size and eight to twelve times more than aluminum alloy plates. Different densities, the need for corrosion prevention, and the cost of upkeep over the product's lifetime must all be taken into account in the total cost analysis. When weight is important, practical savings can often support material prices. Long service life in corrosive environments lowers lifetime costs despite higher initial investment.

Can providers offer unique sizes and processing?

Suppliers you can trust give a wide range of customization options, such as precise cutting, thickness grinding, shape forming, and full CNC machining services. Custom options vary from supplier to seller, with specialized makers offering more choices than general metal wholesalers. Depending on how complicated the customization is, it usually adds two to four weeks to normal wait times. However, the investment gets rid of steps in the processing chain that come after and makes better use of materials.

Partner with Zhongyan for Optimized Ti-6Al-4V Plate Solutions

Zhongyan offers precision-engineered titanium grade 5 plate options that are backed by ASTM B265 and ISO 9001:2015 certifications and meet the most stringent needs of the aircraft, medical, and industrial sectors. Our integrated manufacturing is located in Baoji, China's Titanium Valley. It blends modern CNC machining with a full range of material processing services. We have flexible minimum order amounts, can cut to your exact specs, and can support urgent project deadlines with faster delivery plans. Our technical team works with buying professionals and engineers to make sure that the plate specs are the best they can be for your specific weight and strength needs. This way, we can find cost-effective solutions that don't lower performance standards. As a reliable provider, we keep strict quality control throughout production and give full paperwork on how the materials were made. Email our sales team at sales@titaniumstudy.com to talk about your application needs and get thorough quotes that are specific to your buying goals.

References

1. Boyer, R., Welsch, G., and Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International, Materials Park, Ohio.

2. Donachie, M.J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International, Materials Park, Ohio.

3. Lütjering, G. and Williams, J.C. (2007). Titanium, 2nd Edition. Springer-Verlag, Berlin Heidelberg.

4. Peters, M., Kumpfert, J., Ward, C.H., and Leyens, C. (2003). "Titanium Alloys for Aerospace Applications." Advanced Engineering Materials, Vol. 5, No. 6, pp. 419-427.

5. ASTM International (2015). ASTM B265-15: Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate. West Conshohocken, Pennsylvania.

6. SAE International (2017). AMS 4911N: Titanium Alloy, Sheet, Strip, and Plate 6Al-4V Annealed. Warrendale, Pennsylvania.
