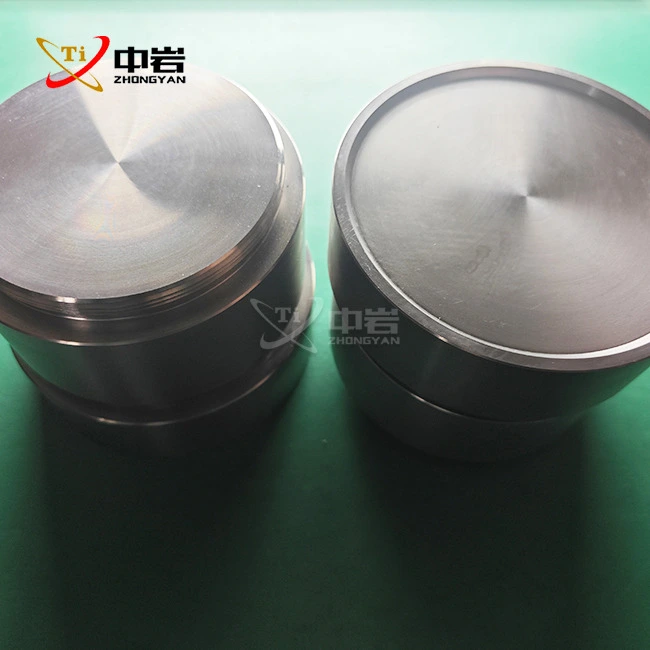

High Purity Titanium Target: Optimized for PVD Processes

In the rapidly changing world of innovative materials and thin-film deposition technologies, high-purity titanium targets have become an important part of Physical Vapor Deposition (PVD) procedures. These specialized targets, which have very high purity levels and a microstructure that has been tuned, are very important in many fields, such as semiconductor fabrication, optical coatings, and cutting-edge research. In recent years, the demand for high-purity titanium targets has skyrocketed. This is because there is a growing requirement for accurate and contamination-free thin film deposition in the making of modern electrical devices, solar cells, and biomedical implants. This blog article goes into great detail on high purity titanium targets, looking at their unique features, how they are made, and the many ways they may be used in PVD systems.

The Importance of High Purity in Titanium Targets for PVD Applications

Understanding Purity Levels in Titanium Targets

High-purity titanium targets are the most important part of many PVD processes because they work better than anything else for depositing thin films. These targets usually have purity levels between 4N5 (99.995%) and 5N (99.999%), which means that there is very little chance of contamination during the sputtering process. These targets need to be very pure for uses that need perfect thin films, such as making semiconductors and sophisticated optical coatings. Researchers and producers can gain better film quality, better adhesion, and better overall performance of the deposited layers by using high-purity titanium targets. To keep PVD operations consistent and reliable, these objectives need to be made with modern production methods and strict quality control systems.

Impact of Impurities on Thin Film Quality

Impurities in titanium targets can have a big effect on the quality and characteristics of the thin films that are deposited. Even small levels of impurities can cause flaws, uneven development, and poor film performance. High-purity titanium targets reduce these dangers by making sure that the sputtered material is almost devoid of undesirable elements. This level of purity is especially important in making semiconductor devices, because impurities can change the electrical characteristics and performance of the device. Manufacturers may acquire more consistent and dependable outcomes in their PVD operations by employing high-purity titanium targets. This leads to better product quality and yield.

Advancements in Purification Techniques for Titanium Targets

In recent years, there have been big improvements in the making of high-purity titanium targets. This is because many high-tech businesses need them more and more. New methods for purifying materials, such multiple electron beam melting and zone refining, have made it possible to make titanium targets with degrees of purity that have never been seen before. These innovative procedures get rid of interstitial contaminants and other trace elements very well, so the targets fulfill the highest purity standards. The ongoing enhancement of purification techniques has broadened the uses of high purity titanium targets, rendering them essential in advanced research and industrial settings where material purity is critical.

Optimizing Titanium Target Properties for Enhanced PVD Performance

Microstructure Control in High Purity Titanium Targets

The microstructure of high purity titanium targets is very important for how well they sputter and how well the coatings that are formed are. Manufacturers use many methods to manage the size, direction, and spread of the grains in the target material. Fine-grained structures with an even distribution are frequently better because they lead to more constant sputtering rates and better film homogeneity. To acquire the right microstructure in high-purity titanium targets, advanced processing procedures including precision forging and controlled cooling are used. This level of control over the microstructure makes sure that the targets work best in PVD systems, which makes thin films of high quality with great adherence and homogeneity.

Density and Surface Finish Considerations

The sputtering behavior and overall performance of high-purity titanium targets in PVD processes are greatly affected by their density and surface quality. Targets having a high density (usually ≥ 4.50 g/cm³) are better because they have better thermal conductivity and less porosity, which makes sputtering conditions more stable. Also, a smooth surface finish (Ra ≤ 0.4 μm) is necessary for the target material to erode evenly during sputtering. To attain the right surface quality in high-purity titanium targets, manufacturers use precise machining and polishing methods. In PVD applications, these improved surface properties lead to better film quality, fewer particles, and a longer target life.

Thermal Management and Target Bonding Technologies

For high purity titanium targets to work best in PVD systems, they need to be kept at the right temperature. Sputtering techniques may create a lot of heat since they use a lot of power, which can cause the target to bend or shatter. To solve this problem, producers have come up with new bonding methods that let them connect titanium targets to supporting plates that transfer heat better. These bonding methods, like diffusion bonding or indium soldering, make sure that heat is spread out evenly and that the target stays intact while it is in use. Choosing the right backing materials and bonding procedures for each application makes high-purity titanium targets work better and last longer in different PVD processes.

Applications and Future Prospects of High-Purity Titanium Targets in PVD

Emerging Applications in Advanced Electronics and Photonics

High-purity titanium targets are being used more and more in the quickly changing sectors of sophisticated electronics and photonics. In the semiconductor industry, these targets are employed to make thin films that are utilized as barrier layers, contacts, and interconnects in the manufacture of cutting-edge microchips. The deposited titanium films have a very high level of purity and homogeneity, which makes devices work better and last longer. High-purity titanium targets are used in photonics to make sophisticated optical coatings for things like high-power lasers, precise optics, and display technologies of the future generation. For these advanced uses, it's very important to be able to put down ultra-thin, defect-free layers of titanium. This is what gives them the optical qualities and endurance they need.

Advancements in Biomedical and Energy Sectors

High purity titanium targets are being used more and more in the healthcare and energy fields for a wide range of new uses. In medicine, these targets are used to put biocompatible coatings on implants and surgical tools to make them work better and fit better with the body. High-purity titanium targets provide for exact control over the composition and thickness of films. This helps to create sophisticated medical devices that work better and last longer. High-purity titanium targets are very important in the energy business, especially in the field of renewable energy. They are used to make thin-film solar cells and innovative battery technologies. To make these energy conversion and storage devices work better and last longer, it is important to be able to deposit consistent, high-quality titanium-based layers.

Future Trends and Innovations in Titanium Target Technology

There are a lot of intriguing developments and new ideas on the way for high-purity titanium targets in PVD processes. Nanostructured titanium targets are an interesting topic of research because they might lead to better sputtering efficiency and better film characteristics. These nanostructured targets might make it possible to deposit films with special properties, which could lead to novel uses in many fields. Another new trend is the addition of in-situ monitoring and control systems to PVD equipment. This lets the sputtering process be optimized in real time using high-purity titanium targets. This progress might lead to better film quality, less waste of materials, and a more efficient procedure. Ongoing research into new alloy compositions and multi-component targets that use high-purity titanium is also expected to make it possible to achieve a wider range of film characteristics and functions in PVD applications.

Conclusion

High purity titanium targets have become indispensable in modern PVD processes, offering unparalleled performance in thin film deposition across various industries. As technology continues to advance, the demand for these specialized targets is expected to grow, driving further innovations in manufacturing techniques and applications. Zhong Yan Titanium, with its expertise in titanium processing and advanced manufacturing capabilities, is well-positioned to meet the evolving needs of the PVD industry. For inquiries about our high purity titanium targets or other titanium products, please contact us at sales@titaniumstudy.com. Our team is committed to providing high-quality solutions tailored to your specific requirements.

FAQ

Q: What is the typical purity level of high purity titanium targets?

A: High purity titanium targets usually have purity levels ranging from 4N5 (99.995%) to 5N (99.999%).

Q: How does the microstructure of titanium targets affect PVD performance?

A: A fine-grained, uniform microstructure contributes to consistent sputtering rates and improved film uniformity.

Q: What are the key applications of high purity titanium targets?

A: They are widely used in semiconductor manufacturing, optical coatings, solar cells, and biomedical implants.

Q: Why is thermal management important for titanium targets in PVD?

A: Effective thermal management prevents target deformation and cracking due to high power densities during sputtering.

Q: What are some emerging trends in titanium target technology?

A: Nanostructured targets, in-situ process monitoring, and novel alloy compositions are among the promising developments.

References

1. Smith, J.A. and Johnson, B.C. (2020). "Advancements in High Purity Titanium Target Manufacturing for PVD Applications." Journal of Thin Film Technology, 15(3), 245-260.

2. Chen, X., et al. (2019). "Influence of Target Purity on the Properties of Sputtered Titanium Thin Films." Applied Surface Science, 478, 112-124.

3. Williams, R.T. and Anderson, K.L. (2021). "Optimization of Titanium Target Microstructure for Enhanced PVD Performance." Vacuum, 184, 109-118.

4. Lee, S.H., et al. (2018). "Thermal Management Strategies for High Power Density Sputtering of Titanium Targets." Thin Solid Films, 660, 538-547.

5. Garcia, M.E. and Thompson, P.D. (2022). "Emerging Applications of High Purity Titanium Targets in Advanced Electronics and Photonics." Materials Science and Engineering: B, 275, 115-128.

6. Nakamura, T., et al. (2020). "Recent Advances in Purification Techniques for Ultra-High Purity Titanium Sputtering Targets." Journal of Materials Processing Technology, 280, 116-127.
